While organizing Intune policies, I discovered the existence of the Intune Data Warehouse and realized that it’s possible to build BI dashboards using Power BI.

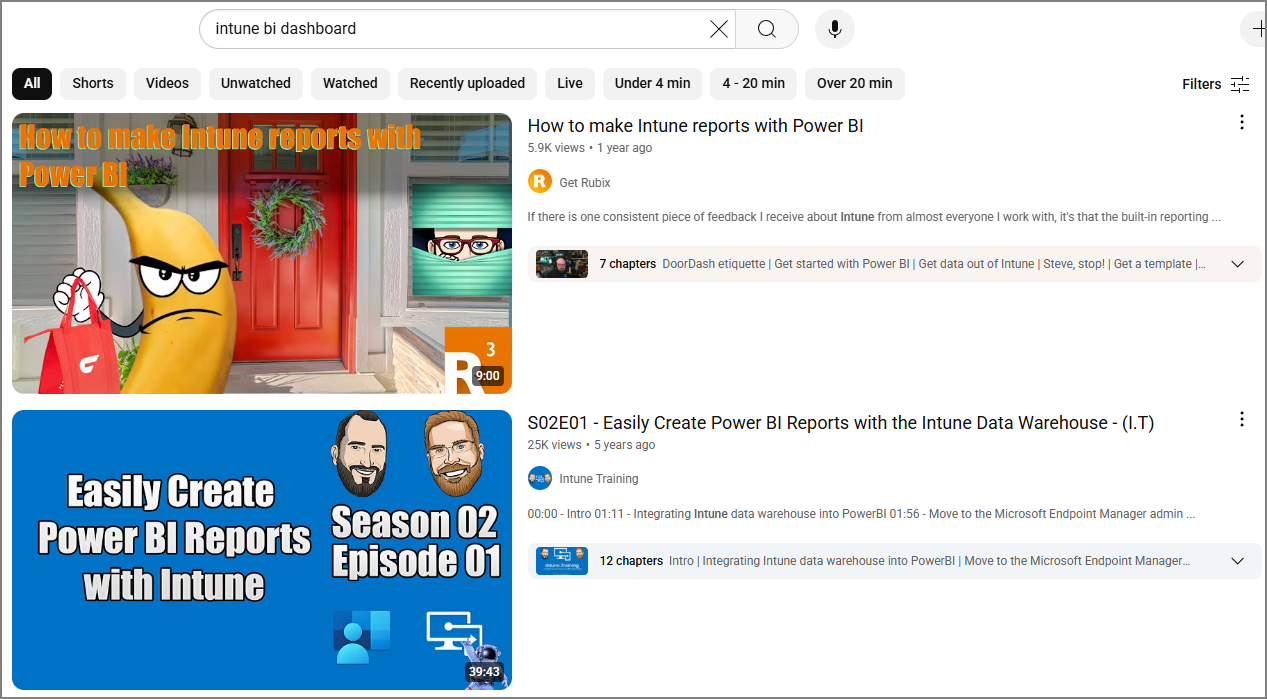

Searching on YouTube, I found that connection methods have been available for quite some time.
My goal is to visualize every area of M365, so I decided to take on the challenge right away.
Youtube: M365. Creating an Intune Dashboard
1. Import Data
There are two main ways to connect Intune Data Warehouse to Power BI.
Method 1. OData Feed

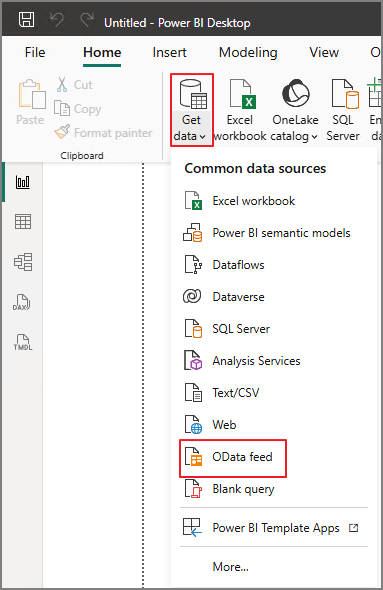

In Power BI, select Get data > OData feed

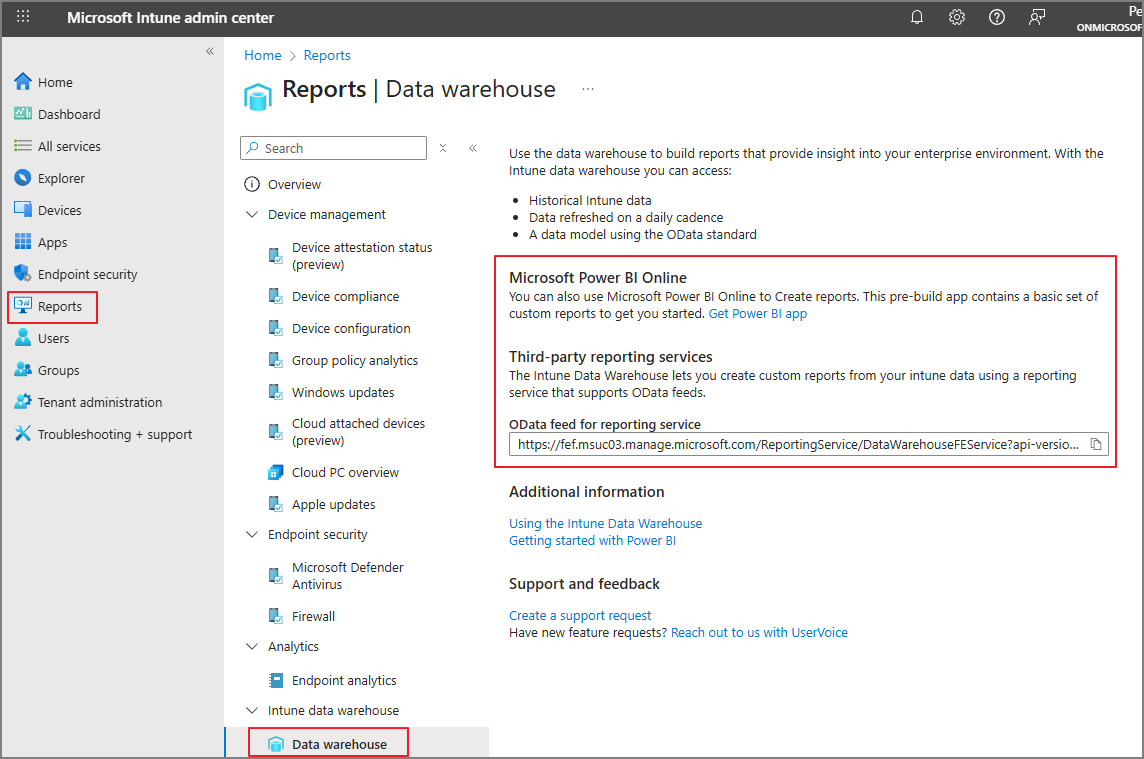

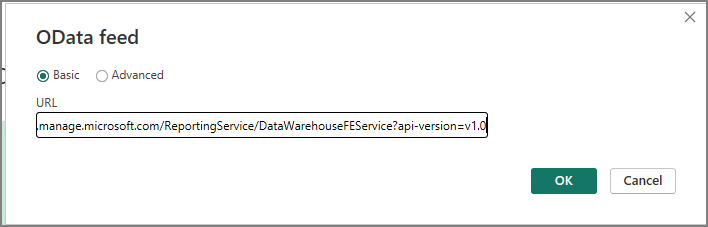

Feed URL Input

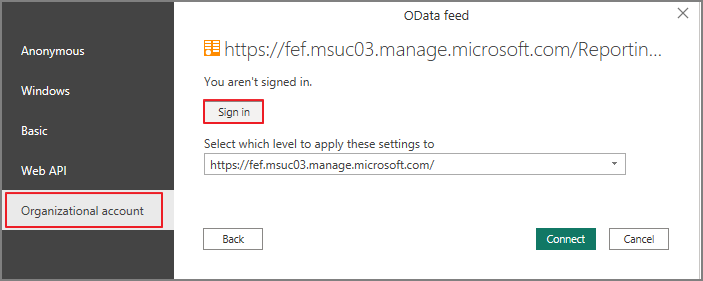

Enter your organizational account and click Connect

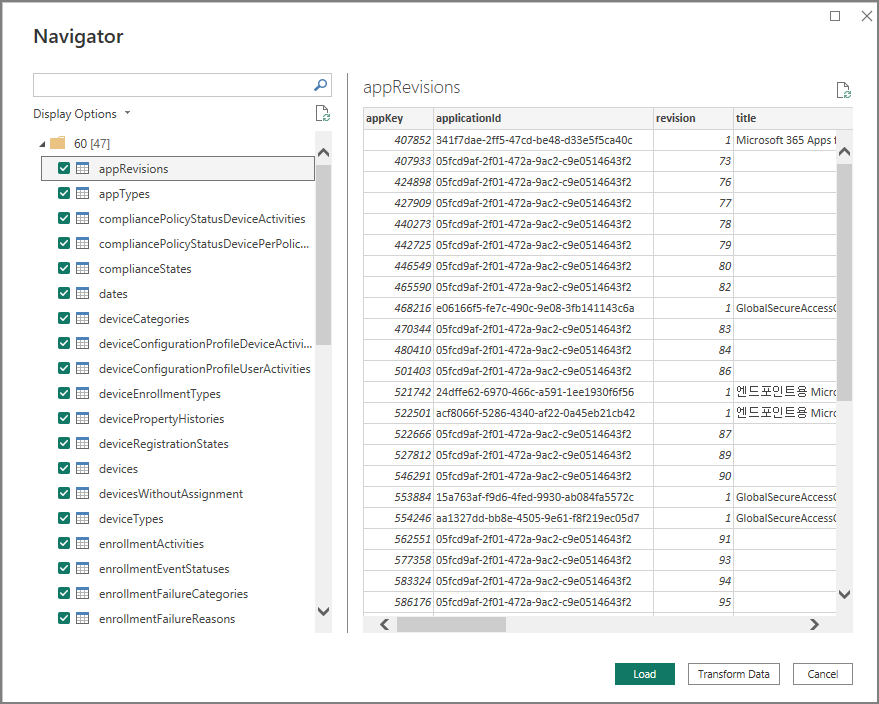

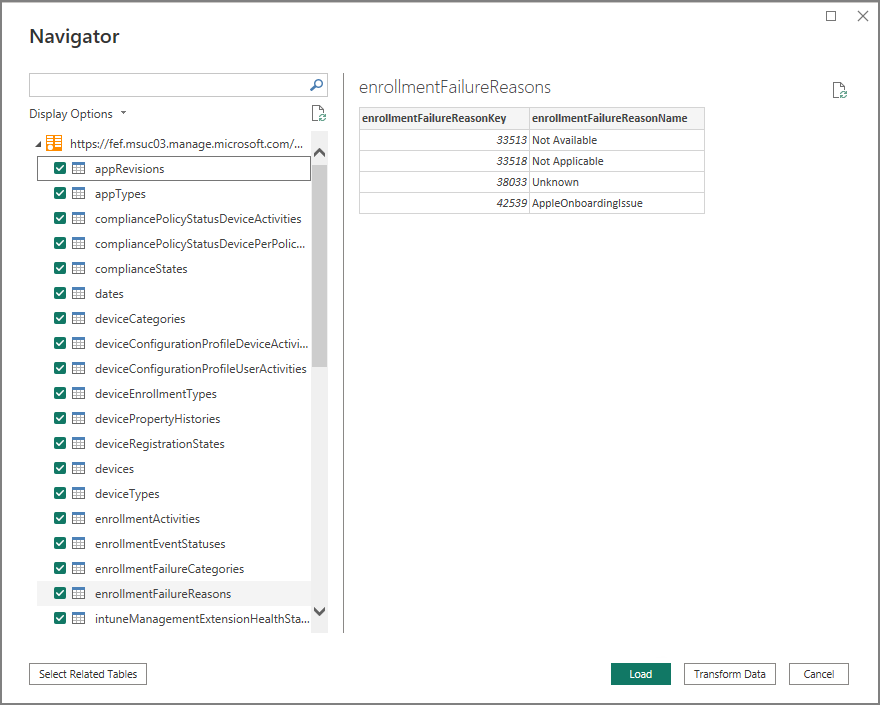

All available tables will be listed – check all and click Load

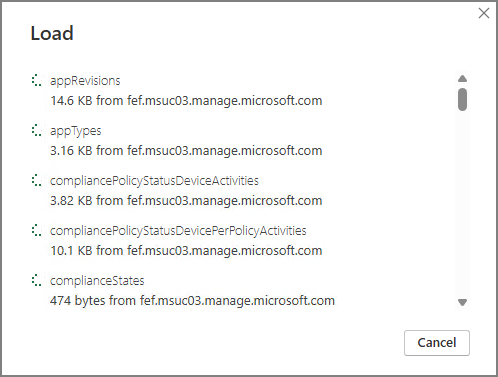

Data Loading
Import complete
Method 2. Connector

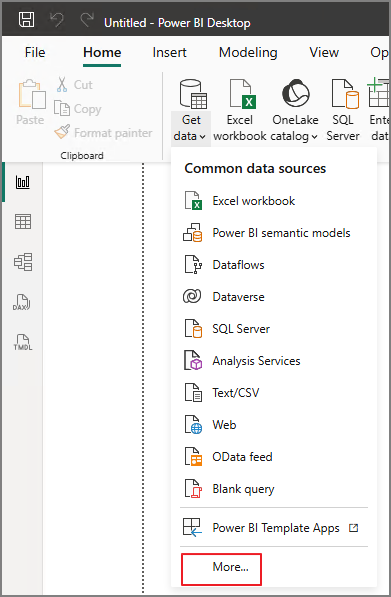

In Power BI, select Get Data > More

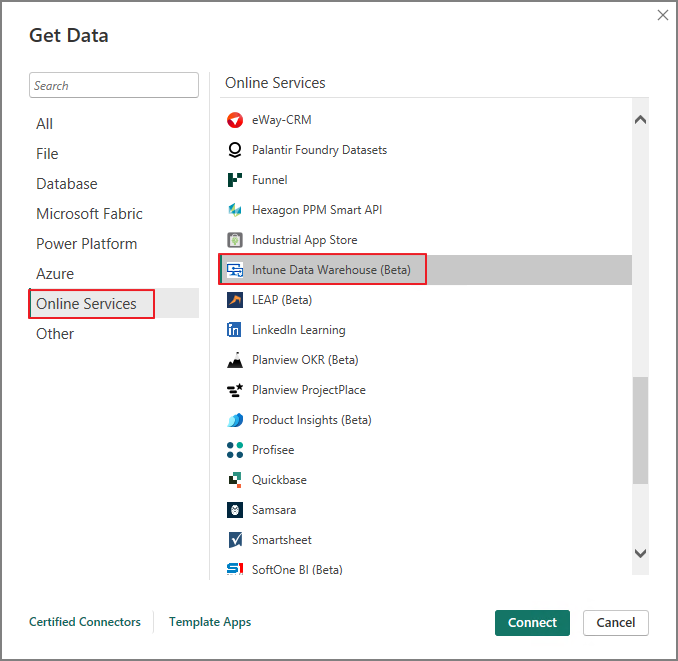

Online Services > Intune Data Warehouse

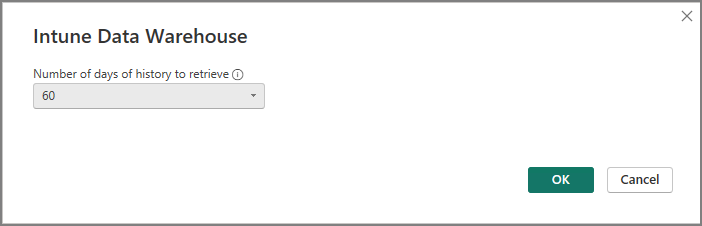

Specify Period
Select tables and click Load (the following steps are the same)
The Connector brings in more tables, but the meaningful data is similar
OData Feed allows for custom queries via Advanced Query
The Connector allows you to specify the period
This post will proceed using the Connector method.
2. Download Power BI Template
Most Intune dashboard resources are based on the following template:

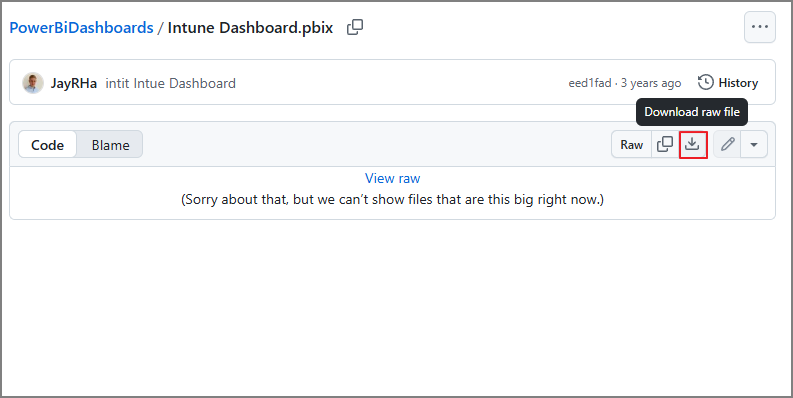

PowerBiDashboards/Intune Dashboard.pbix at main · JayRHa/PowerBiDashboards · GitHub

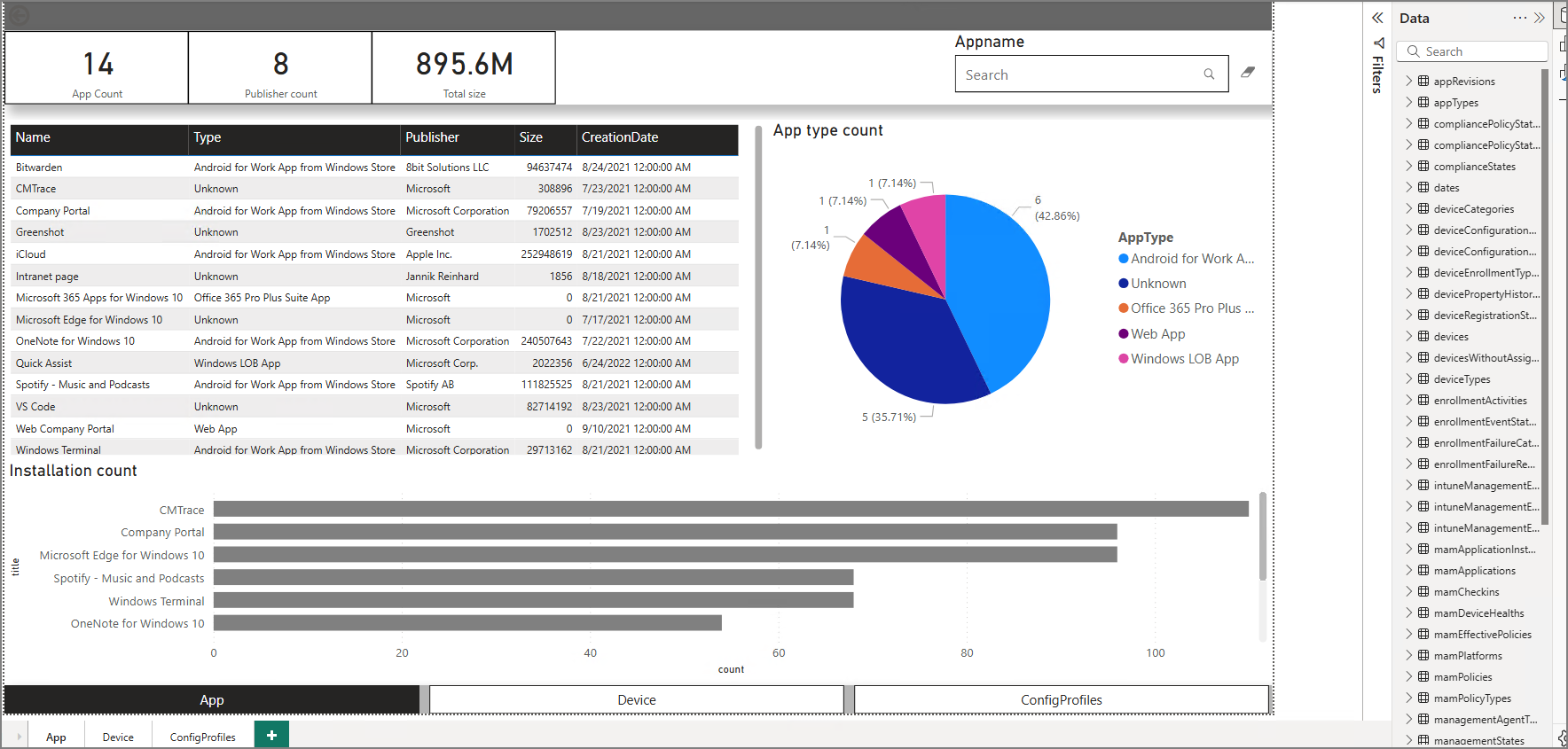

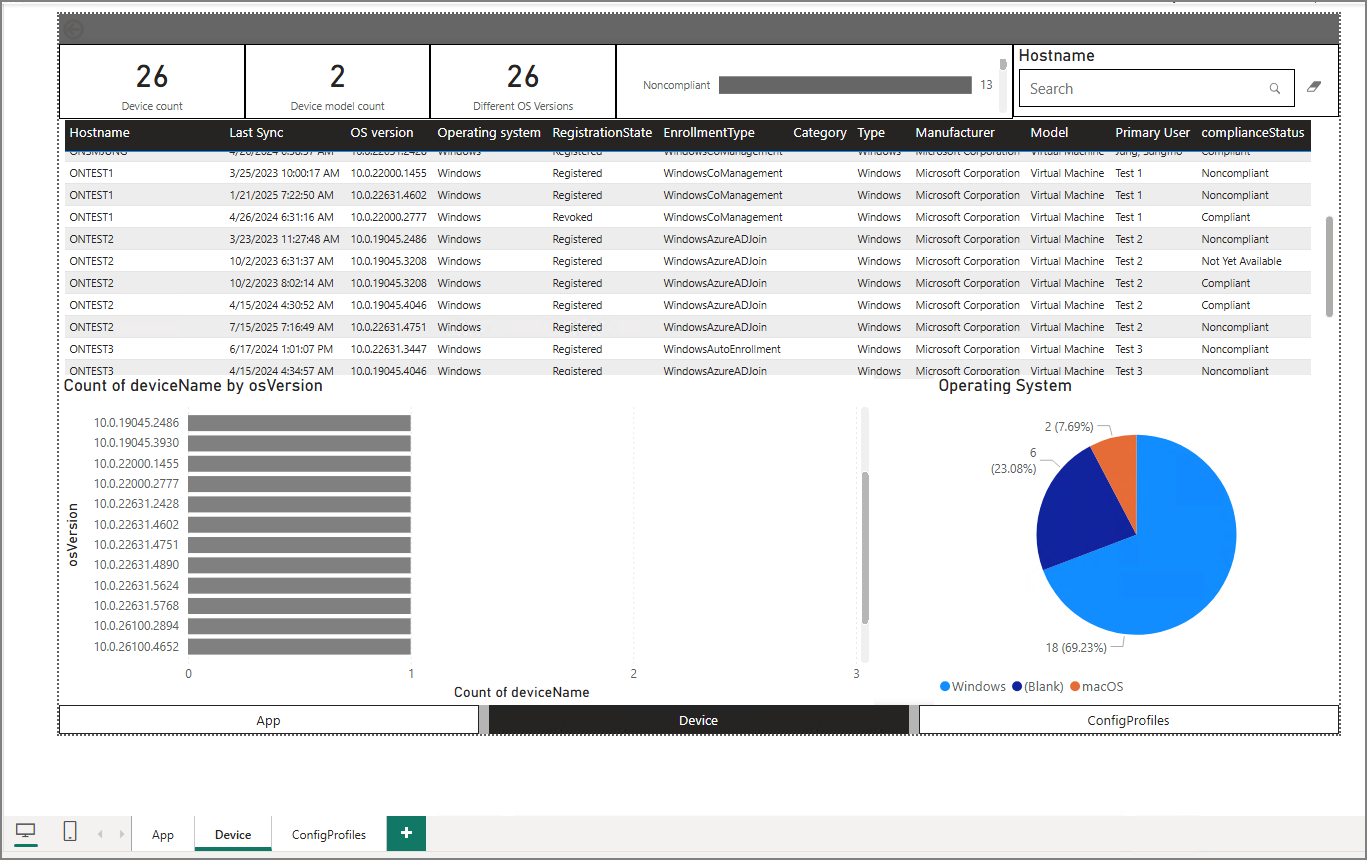

Dashboard Example

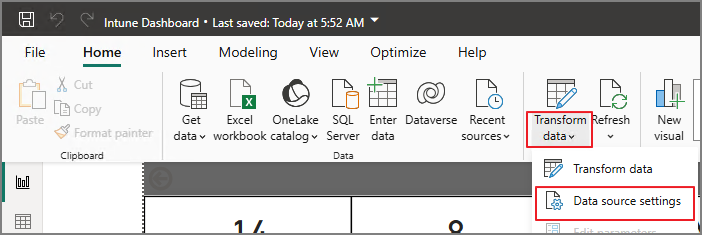

Transform data > Data source settings to check the Connector-based connection.
Refresh

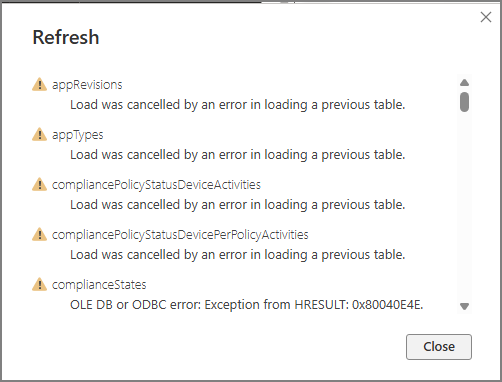

you may encounter an error like below:
The template creator’s blog suggested checking the technical documentation below and changing the locale, but even after changing it, the issue was not resolved. Therefore, I proceeded by copying the template instead.
Supported languages and countries/regions for Power BI
https://learn.microsoft.com/en-us/power-bi/fundamentals/supported-languages-countries-regions

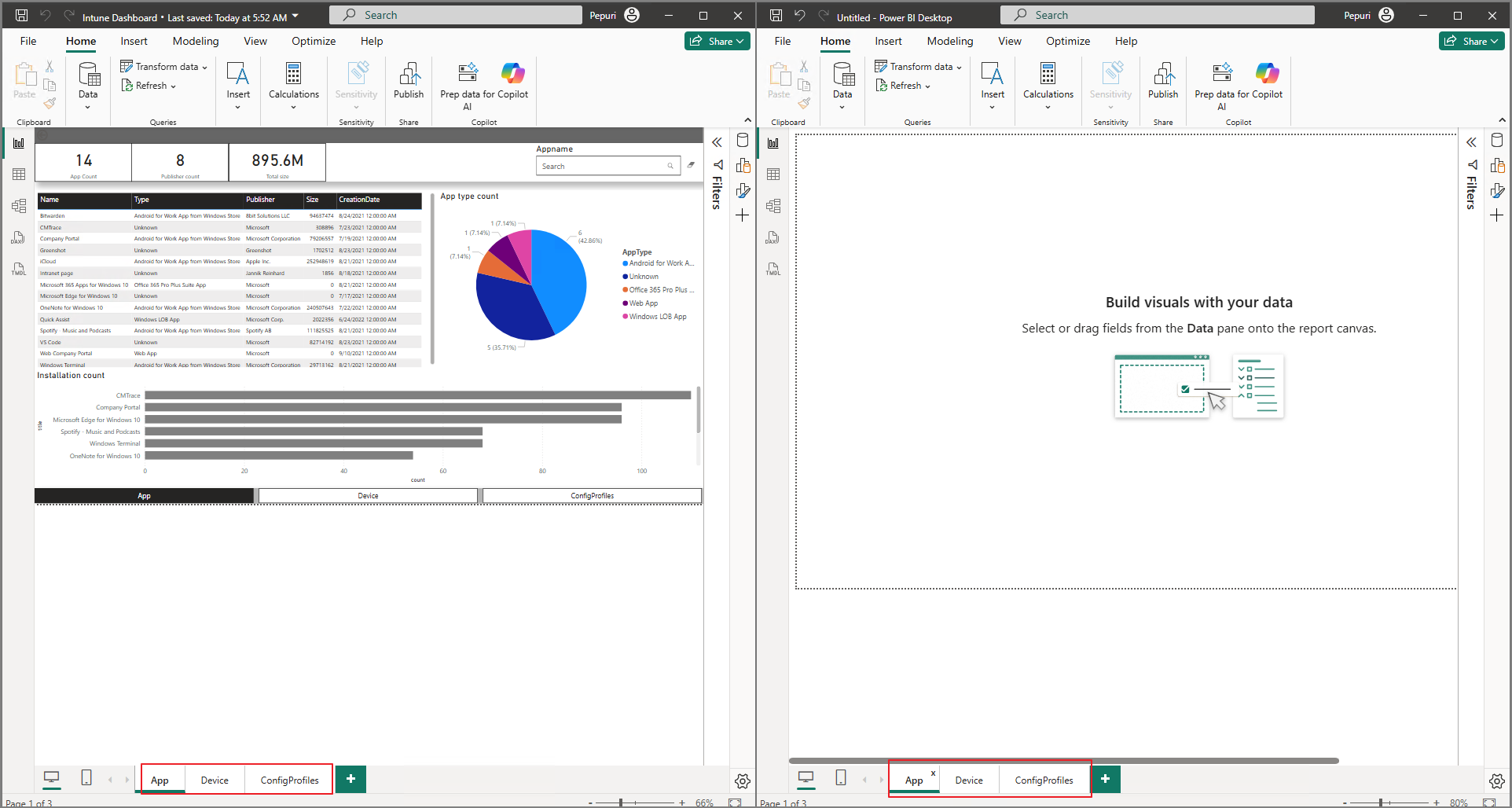

In your BI file connected to your data, add pages with the same names as the template at the bottom.
Copy and paste the three pages as shown below.
3. Add Objects and Set Relationships
Since the structure may not match, you might encounter some errors.
Adjust the structure to match.

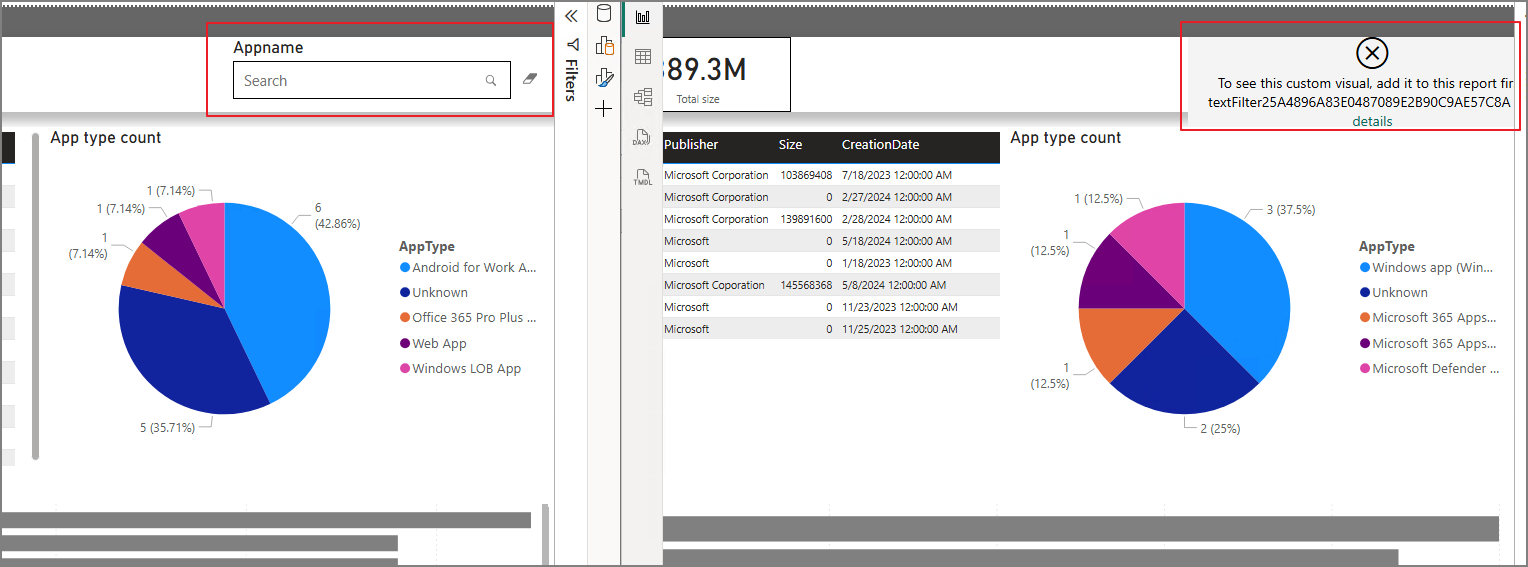

This error occurs because the Text Filter object is missing.

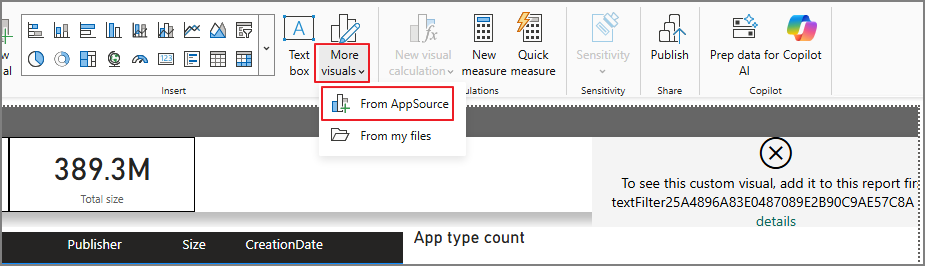

Go to More visuals > From AppSource.

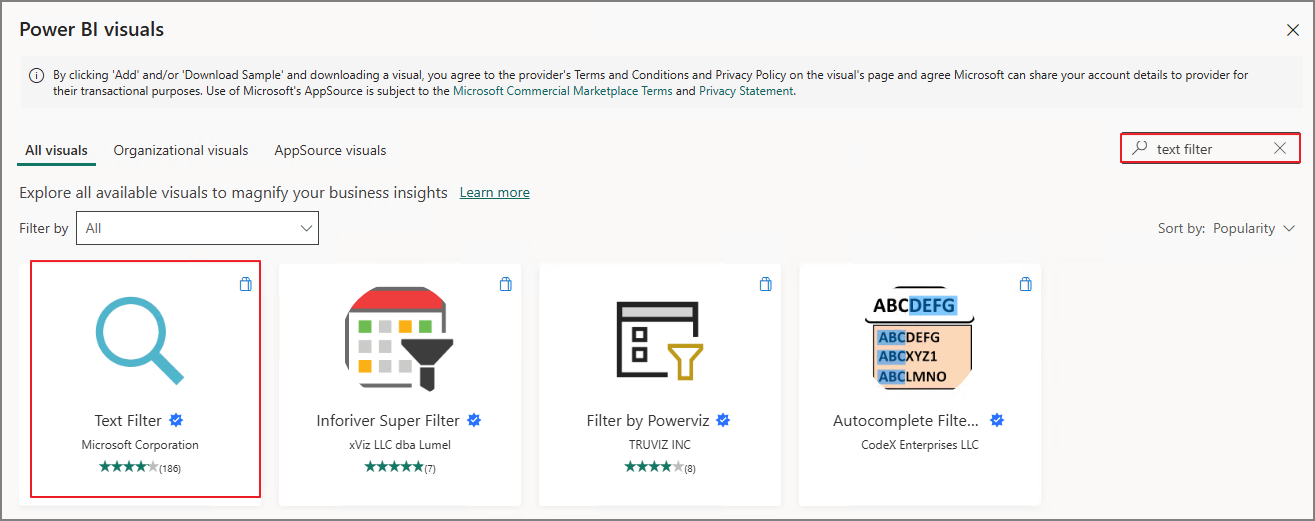

Search for and add the Text Filter.

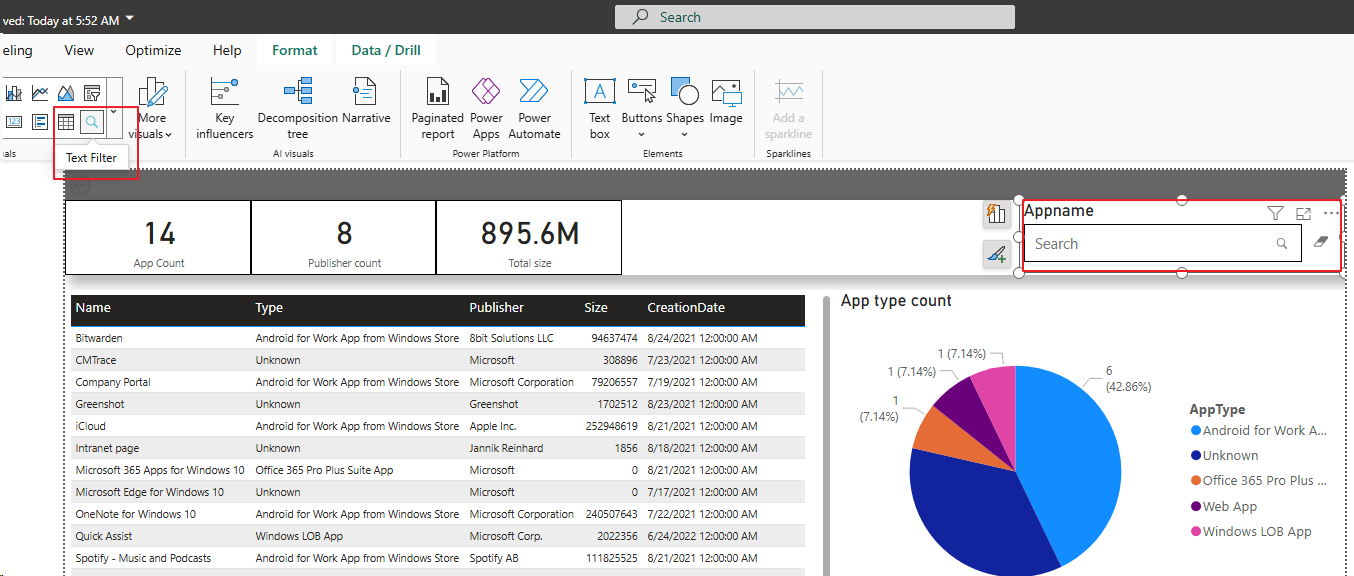

After refreshing or switching pages, you’ll see the issue is resolved.

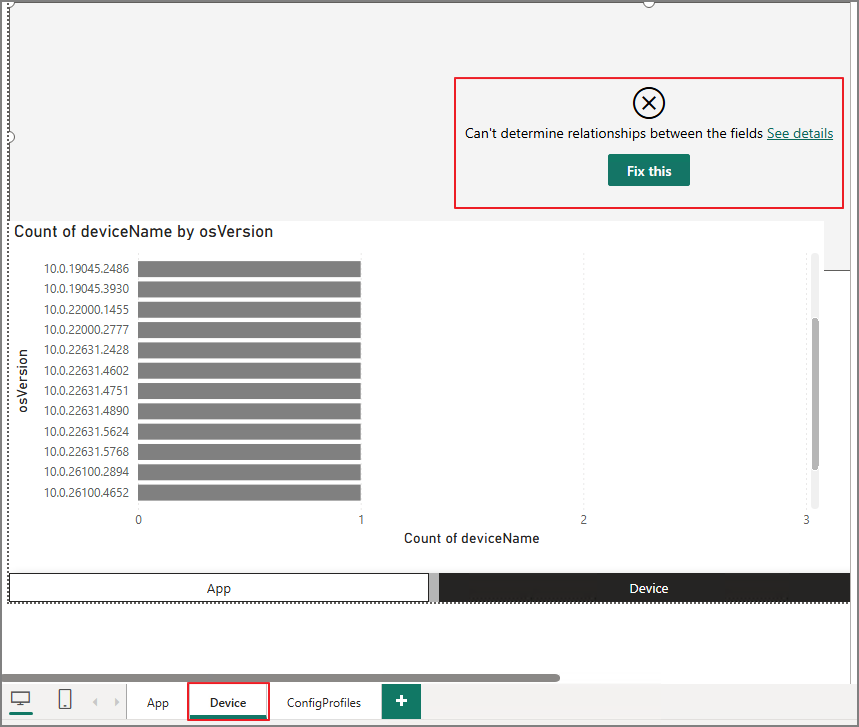

Errors on the Devices page occur because table relationships do not match the template.

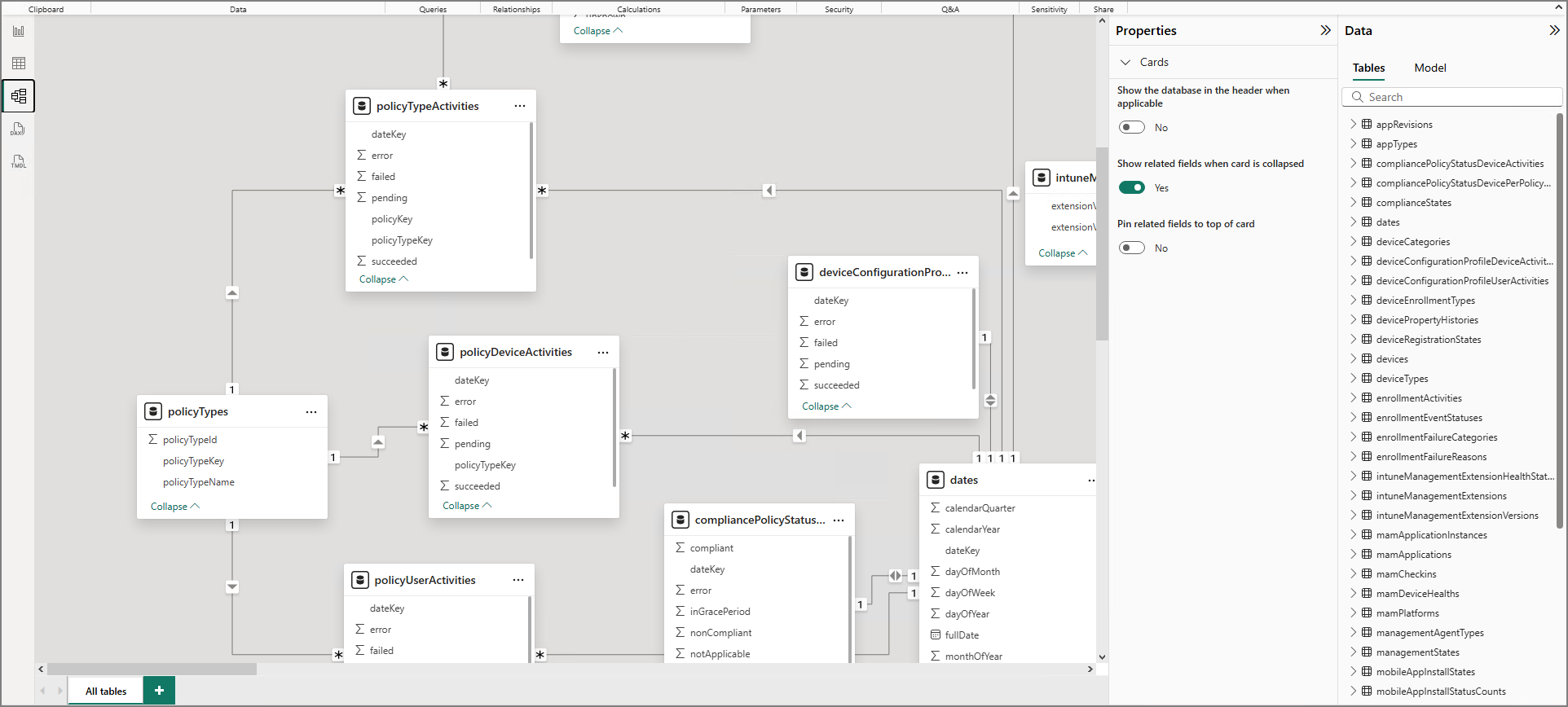

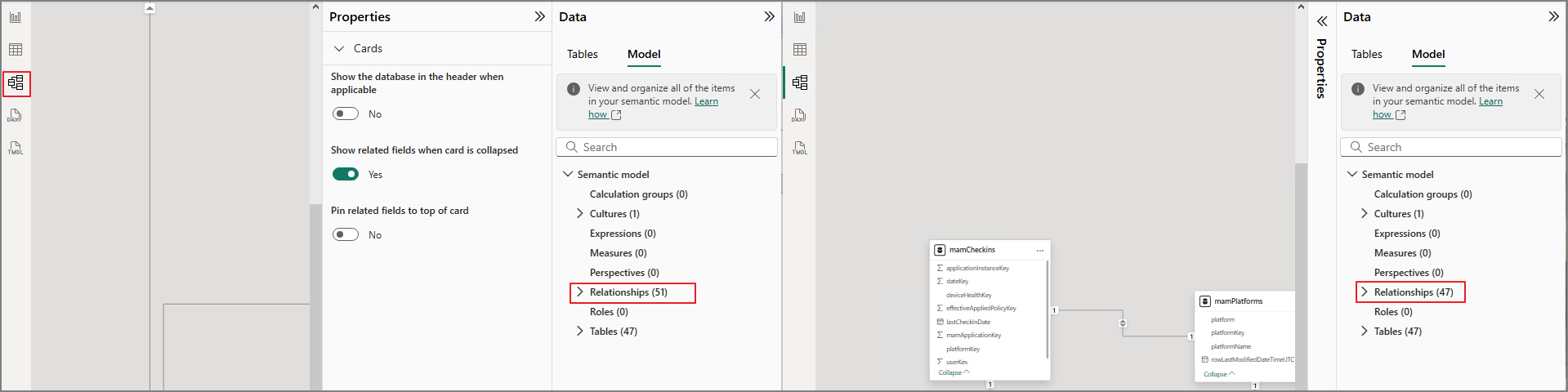

Model View menu to check the differences in Relationships count.
First import data, BI automatically sets relationships.
Since each environment is different, table relationships may vary. Use the following approach as a reference, and match the relationships to the template as needed.

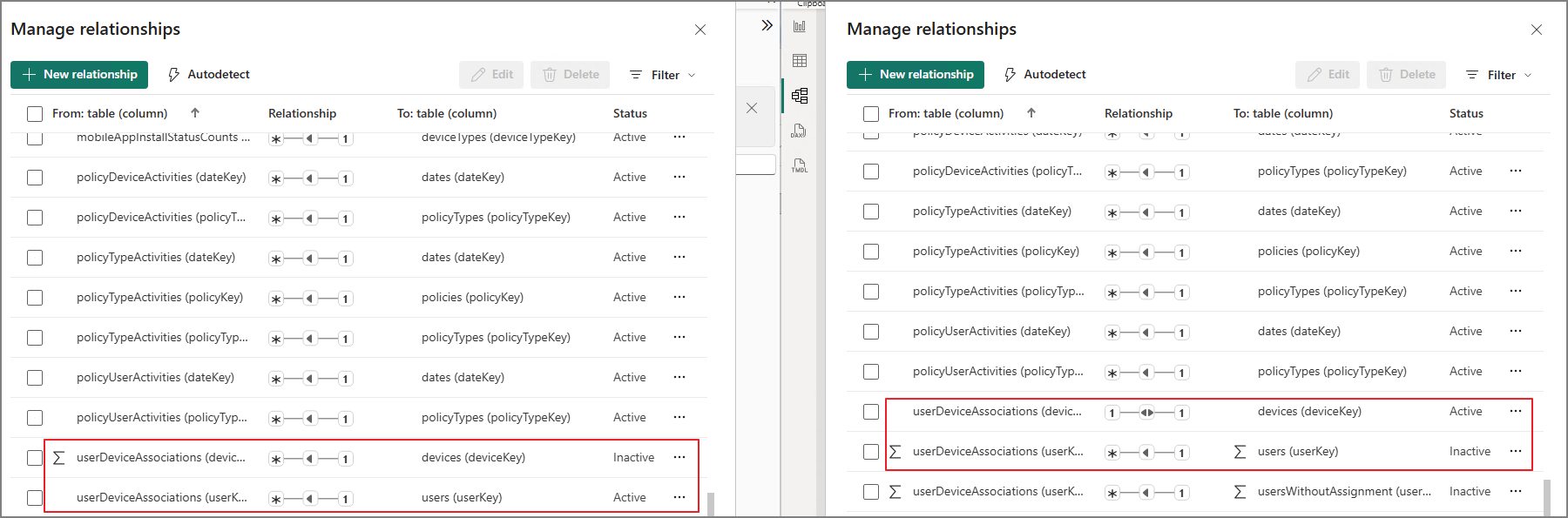

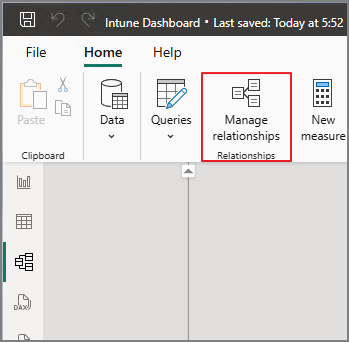

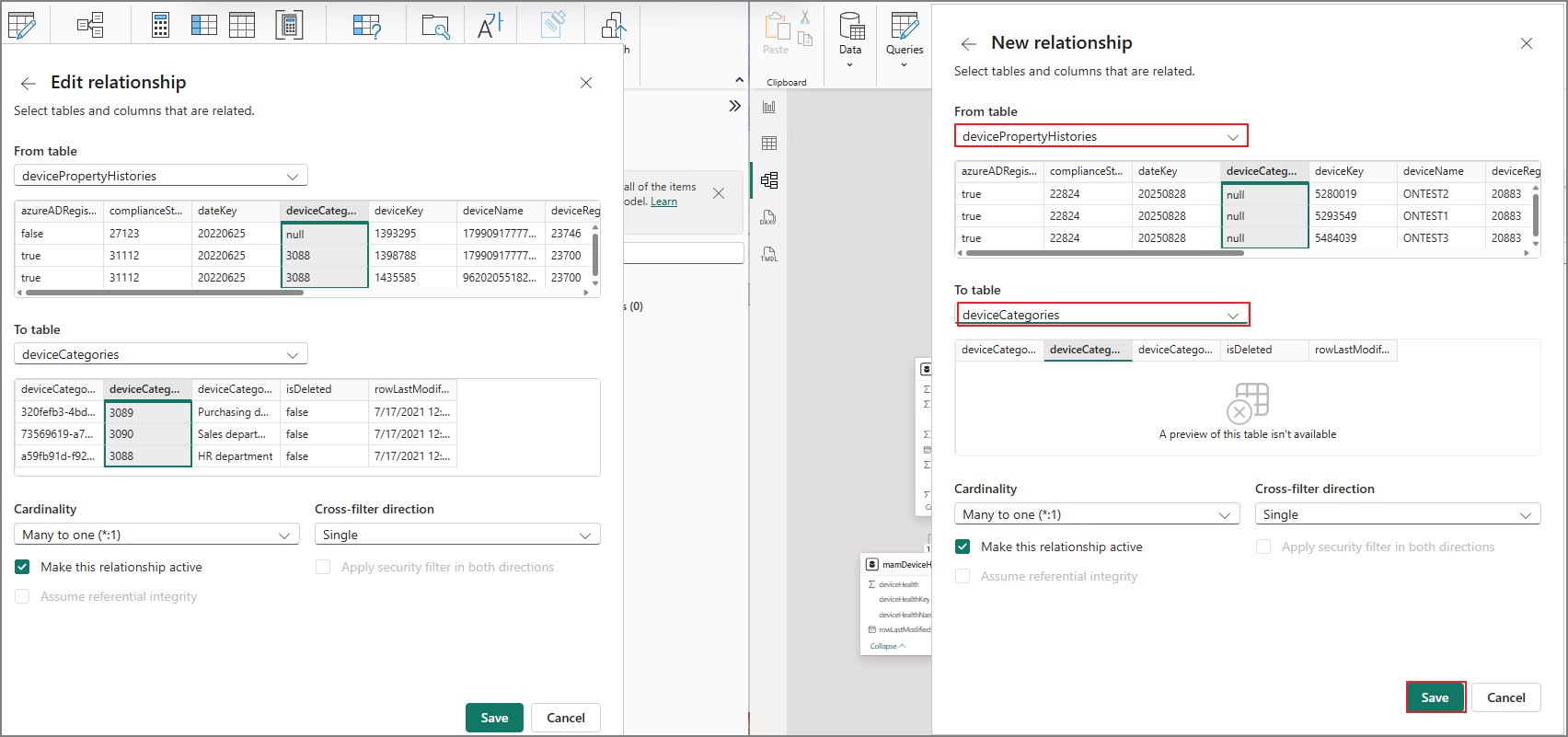

Go to Manage relationships.

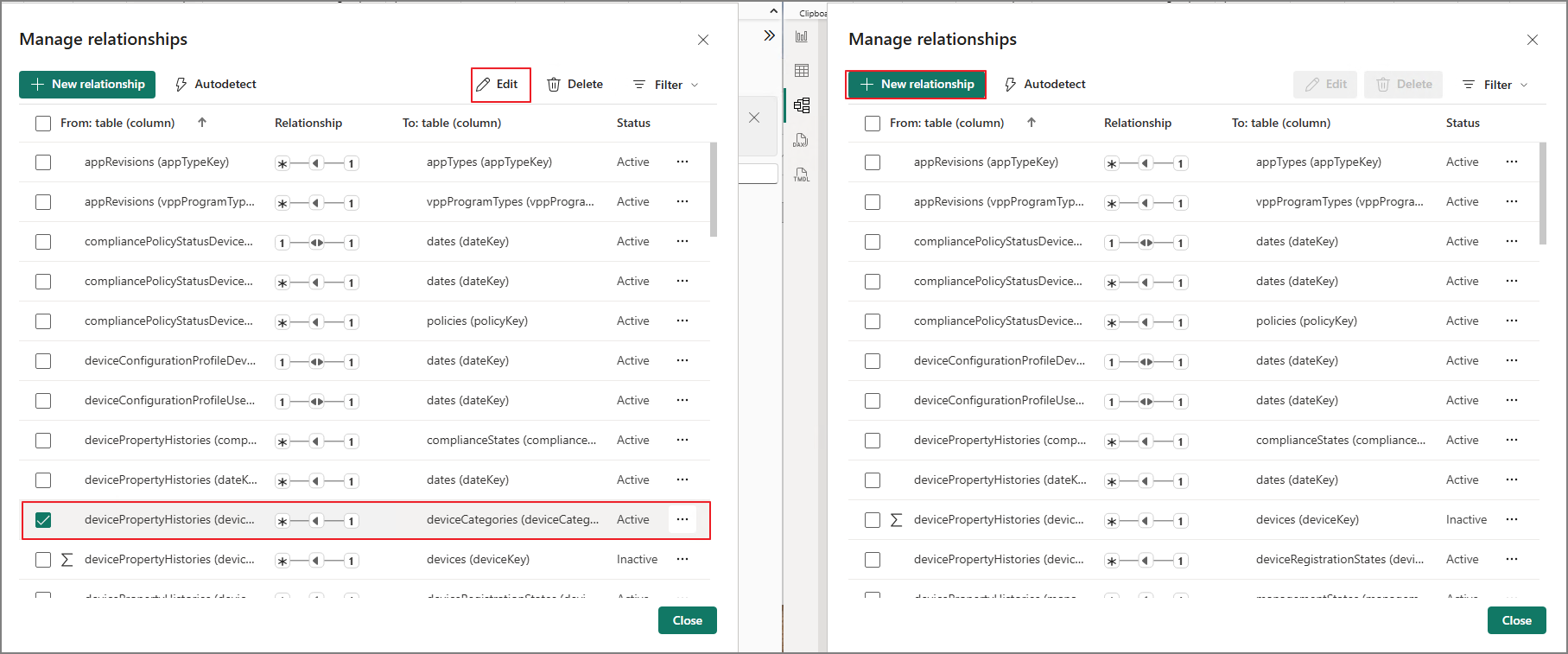

Some relationships in the template are missing in your BI.

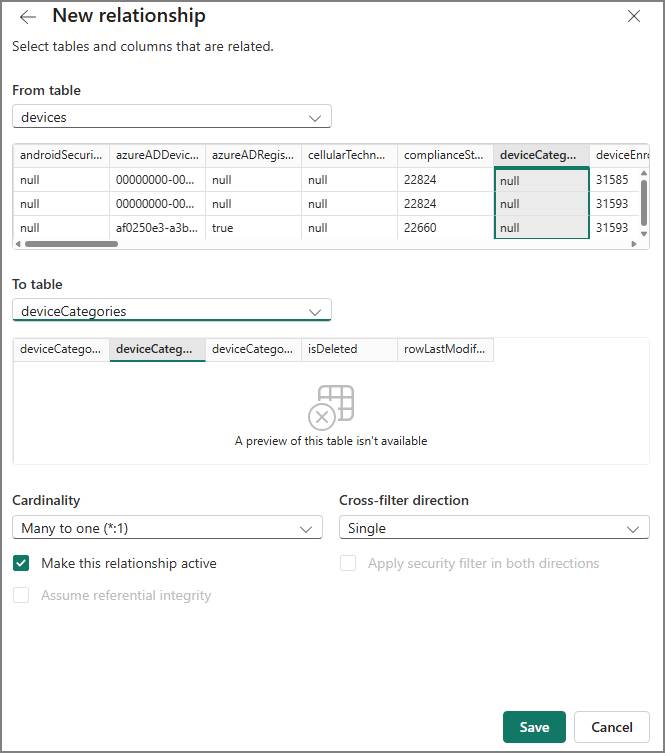

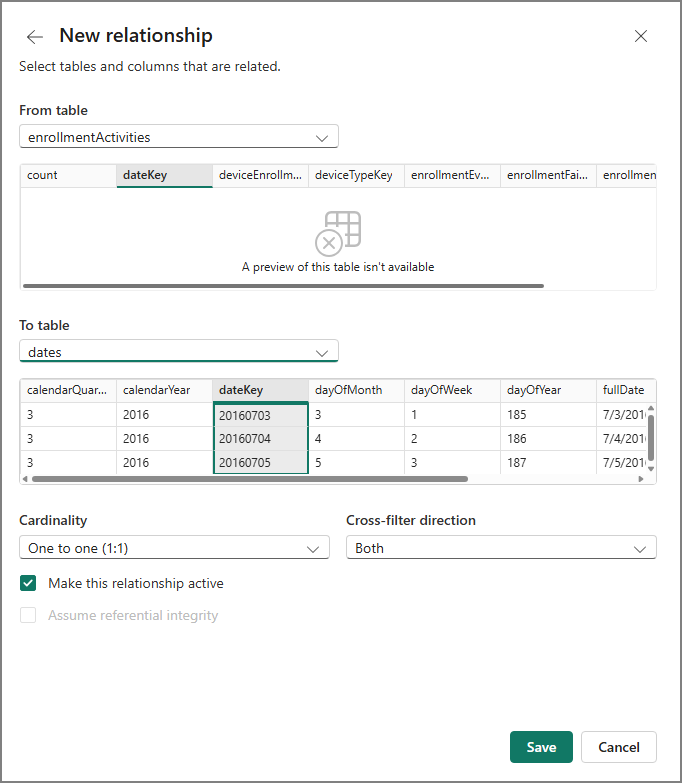

Match Structure
After do it. Save
Sometimes, relationships are not automatically created because there’s no data on one side.
Inactive/Active reversed, fix them as well.
Errors on the Devices page will be resolved.
There are no errors on the ConfigProfiles page as well.
4. Conclusion
By leveraging Power BI, you can intuitively manage Intune devices.
