There has always been a need to synchronize address books (GAL) between companies in scenarios such as M&A, affiliated companies, or group companies, where using a single tenant is not possible. Traditionally, this was achieved by setting up servers like Microsoft Identity Manager (MIM) on an On-Premise Exchange Server, creating objects between ADs to synchronize address books. Alternatively, it could be implemented through HR integration solutions.



However, adopting MIM or HR integration solutions can be prohibitively expensive and requires specialized knowledge for management, making it very burdensome.



Recently, it has become possible to synchronize address books with Cross-tenant Synchronization. Specifically, this functionality automates the invitation of Guests.



https://youtu.be/-HtT_uuDul0







The following content was written based on the technical documentation below.

Configure cross-tenant synchronization - Microsoft Entra ID | Microsoft Learn



Settings are configured separately for the Source Tenant and the Target Tenant.

Step 1: Plan your provisioning deployment

First, collect the information for the Source Tenant and the Target Tenant.

Source Tenant

Domain: Contoso.kr

Tenant ID: a0c898ca-2445-4e74-ab4b-afd7916549a6



Target Tenant

Domain: fabrikam.kr

Tenant ID: afab079d-1f08-4de3-881e-435e497f923f



Step 2: Enable user synchronization in the target tenant



Entra Admin Center > External Identities > Organizational settings > Add organization





Enter the Source Tenant ID information. > Add





Inbound access > Inherited from default





Allow users sync into this tenant > Check



Step 3: Automatically redeem invitations in the target tenant

Trust settings > Automatically redeem invitations with the tenant [Tenant Name] > Check > Save



Step 4: Automatically redeem invitations in the source tenant

Entra Admin Center > External Identities > Cross-tenant access settings





Add organization





Enter Target Tenant ID > Add





Outbound access > Inherited from default





Trust settings > Automatically redeem invitations with the tenant Fabrikam > Check > Save



Step 5: Create a configuration in the source tenant



Cross-tenant synchronization





Configurations > New configuration





Specify the configuration name. > Create



Step 6: Test the connection to the target tenant

Get started





Provisioning Mode: Automatic > Admin Credentials > Tenant Id: Target Tenant ID > Test Connection > Save



Step 7: Define who is in scope for provisioning (Source Tenant)

Provisioning > Settings > Confirm Scope  > Sync only assinged users and groups:

This means specifying only certain users or groups to synchronize.



Users and groups  -> Add user/group





None Selected





Specify the target. > Select > Assign



Step 9: Review attribute mappings

If, for various reasons, you do not want to synchronize specific attributes, proceed as follows.



Provisioning > Mappings > Provision Microsoft Entra ID Users





You can remove some items except for the required fields.





Step 10: Start the provisioning job

Start provisioning





Target Tenant > Entra admin center > Users > All Users





You can verify that they are added as guests as shown below.





You can also verify this in the Exchange Admin Center as shown below.





You can also verify this in the address book as shown below.





Tenant-to-tenant synchronization settings are configured as follows: In the Source Tenant, set up the Outbound settings, and in the Target Tenant, set up the Inbound settings. This synchronization process results in Guest accounts. Since Guest accounts have Mail User attributes, they can be verified in the address book.

반응형
반응형

I am starting my blog in English for the first time.

The purpose is to make it easier to use commands or scripts provided in the videos on YouTube.

The topic for this week is Cross-tenant Mailbox Migration.

I have carried out the process in the simplest Only Cloud environment, and I will cover Azure AD Sync and Exchange Hybrid scenarios later. To understand the principles of Migration, you need to understand the principles of Migration in Exchange Server. I will update this part later.



https://youtu.be/dNLLk-WNu24





I have referred to the following technical documentation to write this.

Cross-tenant mailbox migration - Microsoft 365 Enterprise | Microsoft Learn



Migration Scenario Diagram





[Test Environment]

Source Tenant

Tenant: M365x47686041.onmicrosoft.com

Custom domain: wingtiptoys.kr





Target tenant

Tenant: M365x79002307.onmicrosoft.com

Custom domain: tailspintoys.kr





Since it is a tenant environment, there is no process for assigning cross-tenant migration licenses.

Without the appropriate license, migration is not possible, so we conducted the test using a shared mailbox.





Step 1. Prepare the target (destination) tenant by creating the migration application and secret

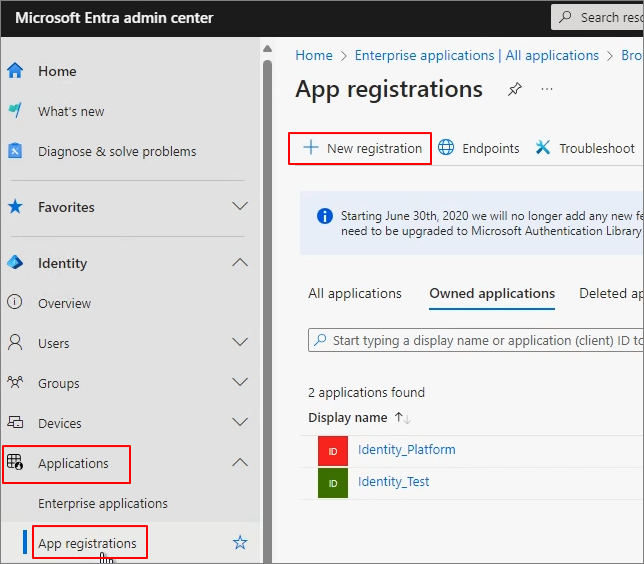

Access https://entra.microsoft.com (Target Tenant) -> search for "app registrations" -> click





New Registration







Enter the information as shown below and then click Register





Record it as the AppID of the Target Tenant.





API Permissions -> Add a permission





APIs my organization uses -> Office 365 Exchange Online -> Office 365 Exchange Online





Application permissions -> Mailbox.Migration -> Add permission





Confirm

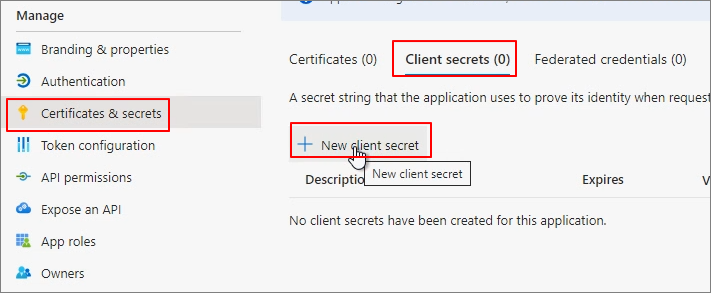

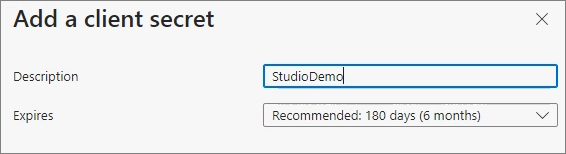

Certificates & secrets -> New client secret



Description -> Add

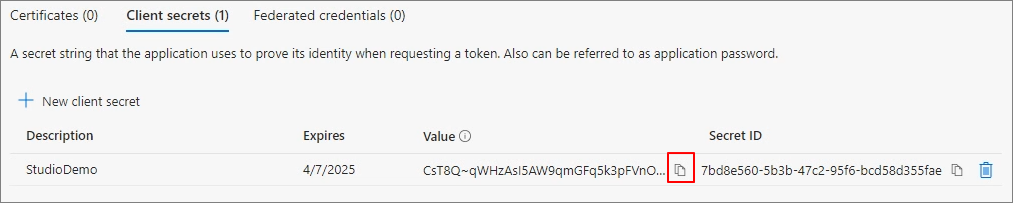

Copy & Record the Value



Enterprise Application -> Click the migration app





Permissions -> Grant admin for Tenant name





Accept





Confirm





After opening a new browser window, access the following URL: (Source Tenant + App ID)

https://login.microsoftonline.com/contoso.onmicrosoft.com/adminconsent?client_id=[application_id_of_the_app_you_just_created]&redirect_uri=https://office.com

#Example
https://login.microsoftonline.com/M365x85148890.onmicrosoft.com/adminconsent?client_id=d8afba35-2ae3-4b42-89f2-8511bfb42bd2&redirect_uri=https://office.com





Accept





Step 2. Prepare the target tenant by creating the Exchange Online migration endpoint and organization relationship

Connect Exchange Online Powershell (Target Tenant)

#Enable customization if tenant is dehydrated
Get-OrganizationConfig | select isdehydrated
Enable-OrganizationCustomization
$AppId = "[guid copied from the migrations app]"

$AppId = "d8afba35-2ae3-4b42-89f2-8511bfb42bd2"





#Create Migration Endpoint

$Credential = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $AppId, (ConvertTo-SecureString -String "[this is your secret password you saved in the previous steps]" -AsPlainText -Force)
New-MigrationEndpoint -RemoteServer outlook.office.com -RemoteTenant "sourcetenant" -Credentials $Credential -ExchangeRemoteMove:$true -Name "[the name of your migration endpoint]" -ApplicationId $AppId

#Sample
$Credential = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $AppId, (ConvertTo-SecureString -String "1x38Q~7-d-hdD92Ue9Or5A2ilTkO-n7C1p2raaWX" -AsPlainText -Force)
New-MigrationEndpoint -RemoteServer outlook.office.com -RemoteTenant "M365x85148890.onmicrosoft.com" -Credentials $Credential -ExchangeRemoteMove:$true -Name "wingtiptoys" -ApplicationId $AppId





Looking at the command structure, you can think of the created Migration Application as being connected as follows.





The endpoint is connected by designating the Remote tenant as the Source tenant.





#Create Organization Relationship

$sourceTenantId="[tenant id of your trusted partner, where the source mailboxes are]"
$orgrels=Get-OrganizationRelationship
$existingOrgRel = $orgrels | ?{$_.DomainNames -like $sourceTenantId}
If ($null -ne $existingOrgRel)
{
    Set-OrganizationRelationship $existingOrgRel.Name -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability Inbound
}
If ($null -eq $existingOrgRel)
{
    New-OrganizationRelationship "[name of the new organization relationship]" -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability Inbound -DomainNames $sourceTenantId
}
---------------------------------------------------------------
$sourceTenantId="a18c909b-006a-404f-8666-c2ccae261bcd"
$orgrels=Get-OrganizationRelationship
$existingOrgRel = $orgrels | ?{$_.DomainNames -like $sourceTenantId}
If ($null -ne $existingOrgRel)
{
    Set-OrganizationRelationship $existingOrgRel.Name -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability Inbound
}
If ($null -eq $existingOrgRel)
{
    New-OrganizationRelationship "wingtiptoys" -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability Inbound -DomainNames $sourceTenantId
}





MailboxMoveCapability is understood as specifying the direction of Cross-Tenant Mailbox Migration.





Copy the Tenant ID from the Source Tenant





$sourceTenantId="a18c909b-006a-404f-8666-c2ccae261bcd"





It appears that the migration direction has been enabled as shown below.





Step3. Prepare the source (current mailbox location) tenant by accepting the migration application and configuring the organization relationship

It can be understood as granting permissions related to app usage in the Source Tenant as shown below.





Source Tenant -> Exchange Admin Center -> Create Mail-enabled security





Enter the name





Add the mailboxes to be migrated to the specified group.





Assign address -> Complete creation





Connect Exchange Online Powershell (Source Tenant)





Create Organization Relationship for the Source Tenant

$targetTenantId="[tenant id of your trusted partner, where the mailboxes are being moved to]"
$appId="[application id of the mailbox migration app you consented to]"
$scope="[name of the mail enabled security group that contains the list of users who are allowed to migrate]"
   $orgrels=Get-OrganizationRelationship
$existingOrgRel = $orgrels | ?{$_.DomainNames -like $targetTenantId}
If ($null -ne $existingOrgRel)
{
    Set-OrganizationRelationship $existingOrgRel.Name -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability RemoteOutbound -OAuthApplicationId $appId -MailboxMovePublishedScopes $scope
}
If ($null -eq $existingOrgRel)
{
    New-OrganizationRelationship "[name of your organization relationship]" -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability RemoteOutbound -DomainNames $targetTenantId -OAuthApplicationId $appId -MailboxMovePublishedScopes $scope
}





Example

$targetTenantId="27359b9a-645f-424d-b4f2-526903be2546"
$appId="d8afba35-2ae3-4b42-89f2-8511bfb42bd2"
$scope="Migrationgroup"
   $orgrels=Get-OrganizationRelationship
$existingOrgRel = $orgrels | ?{$_.DomainNames -like $targetTenantId}
If ($null -ne $existingOrgRel)
{
    Set-OrganizationRelationship $existingOrgRel.Name -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability RemoteOutbound -OAuthApplicationId $appId -MailboxMovePublishedScopes $scope
}
If ($null -eq $existingOrgRel)
{
    New-OrganizationRelationship "ToTargetTenant" -Enabled:$true -MailboxMoveEnabled:$true -MailboxMoveCapability RemoteOutbound -DomainNames $targetTenantId -OAuthApplicationId $appId -MailboxMovePublishedScopes $scope
}





The RemoteOutbound and Inbound relationship settings have been completed through the Organization Relationship settings of each tenant.





Step 4.  Create MailUser

Check the properties of the migration mailbox in the Source Tenant

Get-Mailbox -Identity user01 |Select-Object PrimarySMTPAddress,Alias,SamAccountName,FirstName,LastName,DisplayName,Name,ExchangeGuid,ArchiveGuid,LegacyExchangeDn,EmailAddresses





Create a Mail User in the Target Tenant

New-MailUser -MicrosoftOnlineServicesID User01@tailspintoys.kr -PrimarySmtpAddress User01@tailspintoys.kr -ExternalEmailAddress user01@wingtiptoys.kr -Name User01 -DisplayName User01 -Alias User01

Set-MailUser -Identity User01 -EmailAddresses @{add="X500:Type the LegacyExchangeDN"} -ExchangeGuid "Type the ExchangeGuid"

#In scenarios where the existing domain needs to be completely removed, enter the onmicrosoft.com address and designate it as the target delivery domain.
Set-MailUser -Identity User01 -EmailAddresses @{add="smtp:user01@M365x47686041.onmicrosoft.com"}





The attributes were created to map as follows.





Check the migration connection status with the following command.

Test-MigrationServerAvailability -Endpoint "wingtiptoys" -TestMailbox "user01@tailspintoys.kr"





Step 5. Migration

Migration -> Add Migration batch





Migration to Exchange Online -> Next





Cross tenant migration -> Next





Next





Select migration endpoint ->Next





Import CSV file





Create a CSV with the Target Email Address and proceed with the import.





Enter target delivery domain





Save





Synchronization proceeds as shown below.







After checking the license assignment status, click Complete migration batch. ->

If the migration is complete, remove the batch.





You can confirm the migrated mailboxes as shown below.





And the existing Source Mailbox is changed to a Mail User.

Since the External Address is the Target Tenant address, any emails received after the transition will be forwarded to the Target Tenant.





The overall migration flow is not significantly different from Exchange hybrid or Cross-Forest.
