Many IT engineers and managers are unaware that if your Hyper-V host server is running Windows Server Datacenter Edition, you can use AVMA (Automatic Virtual Machine Activation) keys to automatically activate guest VMs. Leveraging this feature simplifies the activation process and makes management much easier.

In this post, I’ll walk you through how AVMA works, how to use it, and some practical tips for automating Windows Server VM activation on Hyper-V.

Youtube: https://youtu.be/deyWNdW6S-U

What is AVMA?

AVMA (Automatic Virtual Machine Activation) allows you to activate Windows Server virtual machines running on a Datacenter edition Hyper-V host without needing to enter a product key for each VM. This is especially useful for environments where you frequently deploy or redeploy VMs.

Reference:
Automatic Virtual Machine Activation in Windows Server | Microsoft Learn

• Guest VM: The version of Windows Server you can activate depends on the host OS version.

Supported Host and Guest Combinations

For example, if your host is Windows Server 2025, you can activate guest VMs from 2012 R2 up to 2025 using AVMA keys.

AVMA Keys for Each Windows Server Version

You can find the official AVMA keys in Microsoft’s documentation. Here are some examples:

How to Use AVMA Keys During Installation

When installing Windows Server as a VM on your Hyper-V Datacenter host, you can enter the AVMA key during setup:

Choose a licensing method:
Select “Use a product key” and enter the AVMA key for your OS version.

Select the image:
The installer will recognize the OS version that matches the AVMA key.

Post-Installation Activation

After installation, you might notice that Windows is not yet activated. Here’s how to proceed:

Check Activation Status:
Go to Start > Settings > System > Activation. If not activated, you may see an error (e.g., 0xC004F012).

Activate via Command Line:
Open PowerShell or Command Prompt as Administrator and run:

This will trigger activation using the AVMA key.

Verify Activation:
The activation state should now show as “Active”.

Activating an Already Installed VM

If you’ve already installed the OS without entering a key, you can still activate:

Go to System Settings:
Start > System > About > Product key and activation.

Change Product Key:
Enter the appropriate AVMA key and proceed with activation.

Next

Activate

Pro Tip: Using Sysprep

After completing activation, running Sysprep is highly recommended for managing test environments efficiently. This avoids repetitive product key entry and ensures your template VMs are ready for rapid deployment.

Conclusion

AVMA is a powerful feature for anyone managing Windows Server VMs on Hyper-V Datacenter hosts. It streamlines activation, reduces manual work, and helps maintain compliance. Make sure to use the correct AVMA key for your guest OS version, and enjoy hassle-free VM deployments!

Previously, I covered how to export a Power BI M Query from Microsoft Sentinel and connect it to Power BI Desktop.

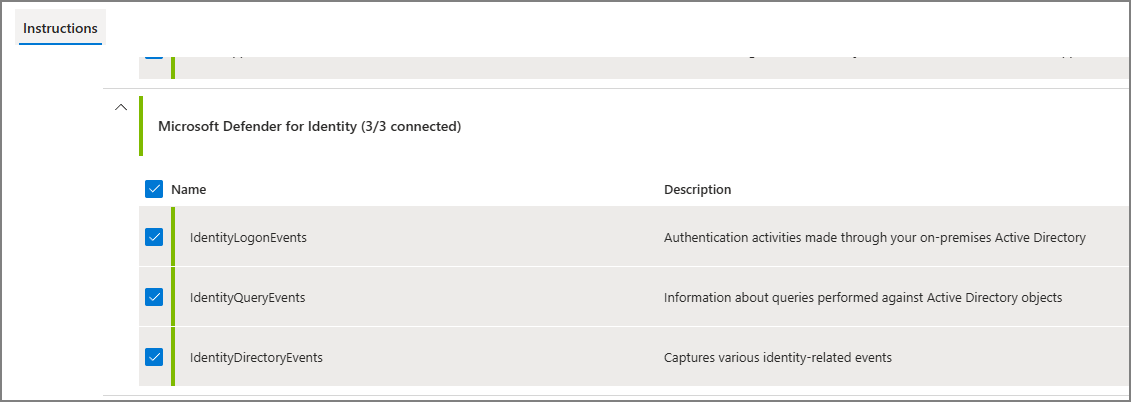

2025.08.24 - [Microsoft 365] - Microsoft 365 Log Management (2): Connecting MDI Logs to Sentinel and Power BI

While doing a self-study to compare Endpoint DLP logs against Microsoft Defender for Endpoint (MDE) logs, I ran into a practical issue: in Power BI, reorganizing column order can be surprisingly annoying when you just want to quickly compare a few fields side by side.

After digging in, I found a very handy trick:

✅ You can take the M Query exported from Sentinel/Log Analytics and paste it directly into Excel Power Query—and it works.

If you do analysis primarily in Excel (filters, quick comparisons, pivot tables), this approach is super practical.

So here’s the clean workflow:

“M Query export → Excel connection → analysis”

Youtube: https://youtu.be/iuyK1sINfzw

TL;DR

• In Sentinel / Log Analytics, export your query using Export to Power BI (as an M query).
• In Excel, open Power Query (Blank Query) and paste the M Query into the Advanced Editor.
• Authenticate using Organizational account, then Close & Load to load it into a worksheet table.
• From then on, just hit Refresh to update logs—no more re-running the same query in the portal.

Step 1) Export the M Query from Sentinel / Log Analytics

In the Azure Portal, navigate to either:

• Microsoft Sentinel > Logs

• Log Analytics Workspace > Logs

Write or select the query for the table > Setting Time range > Share > Export to Power BI (as an M query)

Step 2) Connect to Log Analytics Using M Query in Excel

2-1) Create a Blank Query

In Excel:

• Data > Get Data > From Other Sources > Blank Query

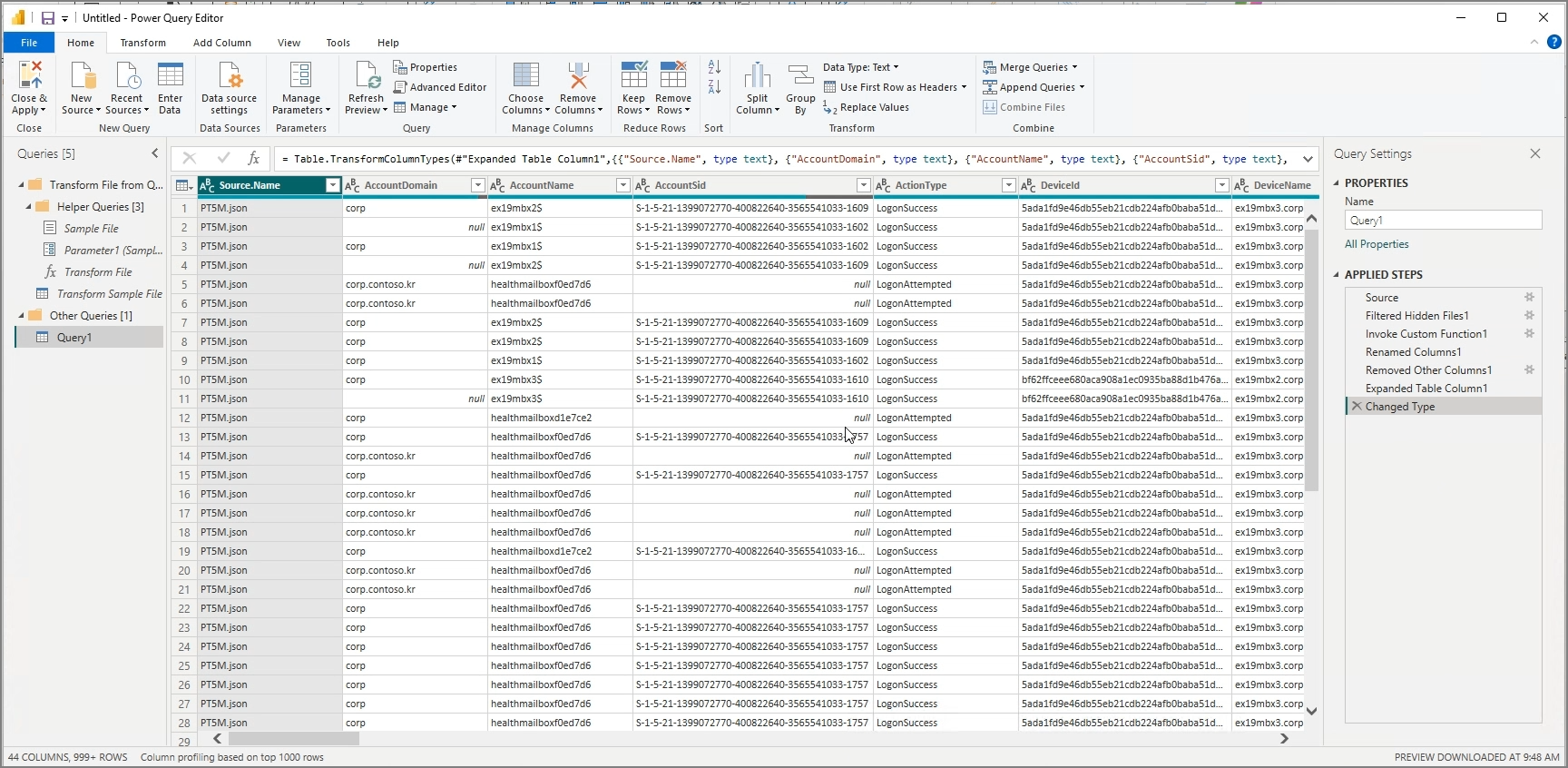

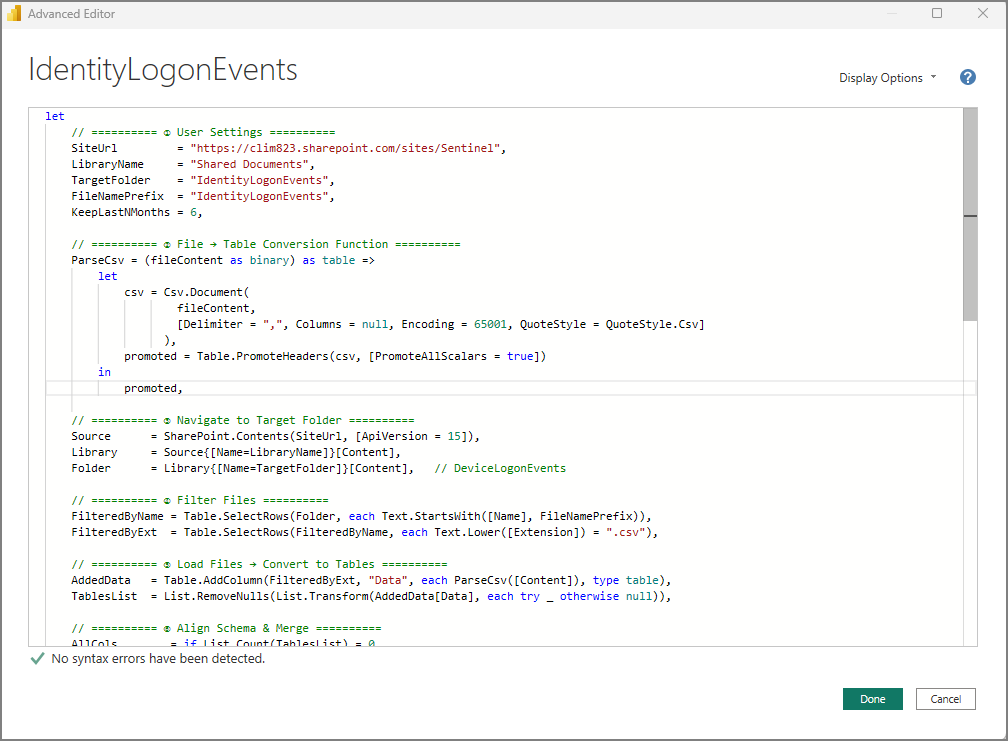

2-2) Paste the M Query into Advanced Editor

In the Power Query Editor:

Open Advanced Editor

Paste the entire M Query you downloaded in Step 1 as-is

A typical exported M Query includes things like:

• The target table
• The query time range

✅ Pro tip: If you need to connect multiple tables, just duplicate the query and update only the table name and time span section. It’s the fastest way to scale your workbook.

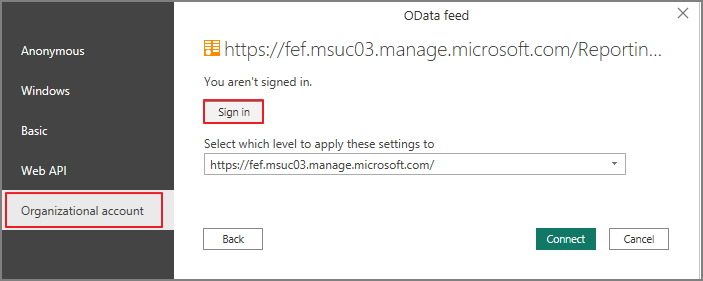

2-3) Configure Credentials (Authentication)

On first connection, you may see Edit Credentials.

Organizational account → sign in → Connect

2-4) Load to Excel and Refresh Anytime

Before loading:

• Rename the query to something meaningful
• Then choose Close & Load to load into an Excel worksheet table

• Use filters, sorting, pivots, conditional formatting, side-by-side comparisons… all the Excel stuff that’s great for fast investigation.

And the best part:

✅ Refresh updates the dataset without re-running the whole process in the portal.

Step 3) Bonus: Analyze Logs with Copilot (Excel + OneDrive/SharePoint)

After loading logs into Excel:

1. Save the workbook to OneDrive or SharePoint
2. Ask Copilot to analyze the data

If Copilot recognizes your tables (for example, MDE-related tables), it can quickly do things like:

• Summaries
• Trend analysis
• Outlier/anomaly detection
• Quick insights and narrative explanations

Wrap-up

Using M Query Export from Sentinel/Log Analytics isn’t just for Power BI—you can connect it directly to Excel and build a refreshable log analysis workbook.

If your workflow is centered on:

• Fast comparison
• Column reordering
• Filtering
• Pivot-based analysis

…then Excel can be the more efficient tool. And once the dataset is in OneDrive/SharePoint, Copilot becomes an extra boost for rapid investigation.

M365 Log Management (4): Building a Windows Update Dashboard from Update History (Intune + Log Analytics + Power BI)

Recently, I’ve been getting more and more interested in visualizing operational logs and device records in a Power BI dashboard. In the Microsoft ecosystem, one of the biggest advantages is that the reporting and data pipelines are designed by the same vendor that built the platform, which often makes the integration more efficient than many third‑party approaches.

At first, I considered pulling everything with PowerShell, but I found that Intune policies + Log Analytics can load the relevant Windows Update signals with far less friction—and then you can build a dashboard on top of them quickly.

This post walks through how to create a Windows Update dashboard using Windows Update for Business reports, Azure Log Analytics, and a Power BI template.

Youtube: https://youtu.be/ToqAFJpoh_g

What You’ll Need (Requirements)

To build the dashboard described here, you’ll need:

• An Azure subscription
• A Log Analytics workspace
• Devices enrolled and managed with Microsoft Intune
• Power BI Desktop (to open the template and customize the report)

Reference Materials (Official/Community)

These were the key resources used while implementing the solution:

• Windows Update for Business reports overview - Windows Update for Business reports | Microsoft Learn
• Tailor Windows Update for Business reports with Power BI | Windows IT Pro Blog
• Configure devices using Microsoft Intune - Windows Update for Business reports | Microsoft Learn

High-Level Flow (How the Data Gets to Your Dashboard)

At a high level, the process looks like this:

1. Intune policy enables required diagnostic/telemetry settings on devices
2. Windows Update for Business reports is enabled and connected to your Log Analytics workspace
3. Devices upload update status signals → stored in Log Analytics tables (e.g., tables prefixed with UC*)
4. A Power BI template queries the Log Analytics workspace and visualizes update health

Step 1) Configure Intune Devices for Windows Update for Business Reports

This step ensures that devices can send the required diagnostic data (including device name, if needed for reporting clarity). I followed the Microsoft Learn guidance and created a configuration policy using the Settings catalog. 1.%20Windows%20Update%20%EA%B8%B0%EB%A1%9D%EC%9D%84%20%ED%86%B5%ED%95%9C%20%EB%8C%80%EC%8B%9C%EB%B3%B4%EB%93%9C%20%EB%A7%8C%EB%93%A4%EA%B8%B0.loop)

1. Create a Configuration Profile

In Intune admin center:

Devices → Windows

Configuration → Policies → New policy

Platform: Windows 10 and later | Profile type: Settings catalog

Create the profile and give it a name (example used: AllowDeviceNameInDiagnosticData)

2. Add Required Settings

In the Settings catalog, search and add the following:

• Allow Telemetry
  • Category: System
  • Value: Basic
• Configure Telemetry Opt In Settings UX
  • Value: Disabled
• Configure Telemetry Opt In Change Notification
  • Value: Disabled
• Allow device name to be sent in Windows diagnostic data
  • Value: Allowed

3. Assign and Monitor the Policy

• Assign the profile to the target users/devices

• Complete Review + create

• Monitor the deployment status in Intune to confirm devices are checking in successfully

Step 2) Enable Windows Update for Business Reports and Connect Log Analytics

Once devices are ready, you need to enable Windows Update for Business reports and link it to your Azure subscription and Log Analytics workspace.

1. Open the Built-In Workbook in Azure

In Azure Portal:

• Go to Monitor

• Select Workbooks > Choose Windows Update for Business reports

• Click Get started

2. Configure Enrollment (Subscription + Workspace)

• Select your Azure subscription & Log Analytics workspace > Save settings

During this flow, you can see that configuration is handled through Microsoft Graph (the UI surfaces the Graph endpoint being called).

3. Wait for Data to Populate

The UI mentions it may take up to 24 hours, but in my case it took 48+ hours before data appeared.

4. Confirm Data in Log Analytics

In Log Analytics, the data lands in tables that start with UC (for example, multiple UC* tables will appear once ingestion begins).

5. Understand Collection / Upload Frequency

Microsoft documentation also lists data types and upload frequency/latency. Practically speaking, you should expect some tables/events to arrive on different cadences (some daily, some per update event, and with latency that can span hours to a day or more).

Step 3) Tailor the Reports with Power BI

Once data is available in Log Analytics, the easiest path to a polished dashboard is to use the official Power BI template published for Windows Update for Business reports.

1. Download the Power BI Template

From the Tech Community / Windows IT Pro blog post, download the Power BI template referenced in the guide.

Tailor Windows Update for Business reports with Power BI | Windows IT Pro Blog

2. Copy the Workspace ID

In Azure Portal:

• Open Log Analytics workspaces

• Copy the Workspace ID

3. Open the Template and Load Data

• Open the Power BI template file
• When prompted, paste the Workspace ID

• Click Load

4. Authenticate

When Power BI prompts for access to the Log Analytics endpoint:

• Choose Organizational account

• Click Connect

5. View Your Windows Update Dashboard

After authentication completes and data is loaded, the dashboard visuals populate and you can begin customizing pages, KPIs, filters, and device group views.

Wrap-Up

With just Intune, Log Analytics, and the Power BI template, you can build a practical Windows Update dashboard without writing custom scripts or maintaining a separate data pipeline. The key is getting device diagnostics configured correctly, enabling WUfB reports, and allowing enough time for ingestion to stabilize.
