Previous Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (5) Sending emails using the Mail.send permission





https://youtu.be/YeCf5GNVzf0





This time, let's add an Email tab to display the contents of Mailfolders.

Currently, the design looks like this. We will add the Email tab between Home and Privacy.



_layout.cshtml



Add the following content as shown below.

<li class="nav-item">
    <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Mailfolders">Email</a>
</li>



Confirm that the addition has been successfully made.





When clicked, it will be displayed as shown below.



반응형
반응형

Previous post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (4) Display Mailbox using the Mail.read permission



Continuing from the previous post, this time we will implement the functionality to compose and send emails using the Mail.Send permission of the Graph API.

We'll continue using the project created in the previous post.



https://youtu.be/KReqV8EPVh0



The process pattern is somewhat established at this point:

Step 1: Add Mail.Send permission

Step 2: Create a ViewModel for sending emails

Step 3: Create a View for composing and sending emails

Step 4: Add the Action Method for sending emails



Step 1. Add Mail.Send permission

Appsettings.json



Add Mail.Send permission.





Step 2. Create a View Model for Sending Emails

Create the EmailSendViewModel to hold the data needed for sending emails. This model will include fields like recipient address, email subject, and email body.



Create the EmailSendViewModel class

public class EmailSendViewModel
{
        public string To { get; set; } = string.Empty;
        public string Subject { get; set; } = string.Empty;
        public string Body { get; set; } = string.Empty;
}



Step 3. Create a View for Sending Emails

Create a view (SendEmail.cshtml) in the Views/Home directory, where users can compose and send emails. This view will use the EmailSendViewModel as its model.



Create SendEmail.cshtml



Modify the content as shown below.

@model Identity.Models.EmailSendViewModel

<h2>Send Email</h2>

<form asp-action="SendEmail">
    <div class="form-group">
        <label>To</label>
        <input asp-for="To" class="form-control" />
    </div>
    <div class="form-group">
        <label>Subject</label>
        <input asp-for="Subject" class="form-control" />
    </div>
    <div class="form-group">
        <label>Body</label>
        <textarea asp-for="Body" class="form-control"></textarea>
    </div>
    <button type="submit" class="btn btn-primary">Send</button>
</form>



Step 4. Add Action Method for Sending Emails

Add the SendEmail action method to the HomeController. This method accepts EmailSendViewModel as a parameter and sends an email using the Microsoft Graph API.



Modify HomeController.cs.



Add the following content.

// GET action method to display the email sending form
[HttpGet]
public IActionResult SendEmail()
{
    return View(new EmailSendViewModel()); // Pass an empty model to the view
}

// Sendemail
[HttpPost]
[AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
public async Task<IActionResult> SendEmail(EmailSendViewModel model)
{
    var message = new Message
    {
        Subject = model.Subject,
        Body = new ItemBody
        {
            ContentType = BodyType.Text,
            Content = model.Body
        },
        ToRecipients = new List<Recipient>()
        {
            new Recipient
            {
                EmailAddress = new EmailAddress
                {
                    Address = model.To
                }
            }
        }
    };

    await _graphServiceClient.Me.SendMail(message, null).Request().PostAsync();

    return RedirectToAction("Index");
}



Navigate to the Home/sendemail URL.





Send a test email



The test email has been received.

반응형
반응형

Previous Post:

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (3) Creating a sample login page using the Microsoft Identity Platform



Continuing from the previous post, this time we will use the Mail.Read permission in the Graph API to retrieve mail folders, subject lines, and content, and publish them on IIS.

We will continue using the project created in the previous post.



https://youtu.be/tOCCgRloYOo



Step 1. Testing Mail.Read Permission

We will test the Mail.Read permission by retrieving only the subject lines of the user's emails on a specific page.

Add the Mail.Read permission to the existing Appsettings.json -> Save the file.



{
  "AzureAd": {
    "Instance": "https://login.microsoftonline.com/",
    "Domain": "M365x31504705.onmicrosoft.com",
    "TenantId": "a0c898ca-2445-4e74-ab4b-afd7916549a6",
    "ClientId": "726cf3c0-8faa-4b91-a3dc-4ec4723a411b",
    "CallbackPath": "/signin-oidc"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "MicrosoftGraph": {
    "BaseUrl": "https://graph.microsoft.com/v1.0",
    "Scopes": "user.read mail.read" //Add Mail.read
  }
}





Modify the HomeController.cs file



Add the //Email Titles section to the existing code as shown below.



using Identity.Models;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Mvc;
using System.Diagnostics;
using Microsoft.Graph;
using Microsoft.Identity.Web;

namespace Identity.Controllers
{
    [Authorize]
    public class HomeController : Controller
    {
        private readonly GraphServiceClient _graphServiceClient;
        private readonly ILogger<HomeController> _logger;

        public HomeController(ILogger<HomeController> logger, GraphServiceClient graphServiceClient)
        {
            _logger = logger;
            _graphServiceClient = graphServiceClient;
        }

        [AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
        public async Task<IActionResult> Index()
        {
            var user = await _graphServiceClient.Me.Request().GetAsync();
            ViewData["GraphApiResult"] = user.DisplayName;
            return View();
        }

        // Email Titles
        [AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
        public async Task<IActionResult> EmailTitles()
        {
            var messages = await _graphServiceClient.Me.Messages
                .Request()
                .Select(m => new { m.Subject })
                .GetAsync();

            var titles = messages.Select(m => m.Subject).ToList();
            return View(titles);
        }

        public IActionResult Privacy()
        {
            return View();
        }

        [AllowAnonymous]
        [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
        public IActionResult Error()
        {
            return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
        }
    }
}



Create the View.

Views -> Home -> Add -> View



Razor View -> Empty -> Add



EmailTitles.cshtml -> Add



It will be generated as shown below.



Modify the content as follows.

@model List<string>

<h2>Email Titles</h2>
<ul>
@foreach (var title in Model)
{
    <li>@title</li>
}
</ul>



Start Debuging -> Log in -> Verify permissions and click Accept.



When you navigate to the Home/emailtitles URL, it will be displayed as shown below.



When compared with OWA (Outlook Web App), you can see that only the email subjects have been retrieved.

This time, let's create a page that retrieves and displays emails in the following structure: Folder -> Subject -> Body.



Step2. Action Method

Action Methods in the controller handle HTTP requests and retrieve data by calling the Microsoft Graph API. We will implement Action Methods such as MailFolders, EmailTitles, and EmailDetails to fetch the list of mail folders, the list of emails in a specific folder, and the detailed content of an email, respectively.



Modify the HomeController.cs file



Remove the existing Email Titles code.



Insert the code for Mail Folders, Titles, and Details respectively.

//MailFolders
public async Task<IActionResult> MailFolders()
{
    var mailFolders = await _graphServiceClient.Me.MailFolders
        .Request()
        .GetAsync();

    return View(mailFolders.CurrentPage.Select(f => new MailFolderViewModel { Id = f.Id, DisplayName = f.DisplayName }).ToList());
}

//EmailTitles
public async Task<IActionResult> EmailTitles(string folderId)
{
    var messages = await _graphServiceClient.Me.MailFolders[folderId].Messages
        .Request()
        .Select(m => new { m.Subject, m.Id })
        .GetAsync();

    var titles = messages.CurrentPage.Select(m => new EmailViewModel { Id = m.Id, Subject = m.Subject }).ToList();
    return View(titles);
}

//EmailDetails
public async Task<IActionResult> EmailDetails(string messageId)
{
    var message = await _graphServiceClient.Me.Messages[messageId]
        .Request()
        .Select(m => new { m.Subject, m.Body })
        .GetAsync();

    var model = new EmailDetailsViewModel
    {
        Subject = message.Subject,
        BodyContent = message.Body.Content
    };

    return View(model);
}



Step3. View model

A View Model is a model used to pass data to the View and is used to define the data retrieved from the Action Method. For example, the EmailViewModel includes the email's ID and subject. This allows the data needed in the view to be structured and managed efficiently.



Right-Click on the Models folder -> Add -> Class



MailFolderViewModel.cs -> Add



It will be generated as shown below.



Modify it as shown below.



namespace Identity.Models
{
    public class MailFolderViewModel
    {
        public string Id { get; set; }
        public string DisplayName { get; set; }
    }
}



Similarly, go to Models -> Add -> Class.



EmailViewModel.cs -> Next



Modify it as shown below -> Save.

namespace Identity.Models
{
    public class EmailViewModel
    {
        public string Id { get; set; }
        public string Subject { get; set; }
    }
}



Add EmailDetailsViewModel.cs in the same way.



Modify it as shown below -> Save.

public class EmailDetailsViewModel
{
    public string Subject { get; set; }
    public string BodyContent { get; set; }
}



Step 4. View

Finally, the View constructs the user interface and displays the data received from the View Model. Create corresponding view files for each action in the Views/Home directory.



Views/Home Folder -> Add -> New Item



MailFolders.cshtml -> Add



Modify as shown below and save.

@model IEnumerable<Identity.Models.MailFolderViewModel>

<h2>Mail Folders</h2>
<ul>
    @foreach (var folder in Model)
    {
        <li><a href="@Url.Action("EmailTitles", "Home", new { folderId = folder.Id })">@folder.DisplayName</a></li>
    }
</ul>



Modify the previously created Emailtitles.cshtml file.

@model IEnumerable<Identity.Models.MailFolderViewModel>

<h2>Mail Folders</h2>
<ul>
    @foreach (var folder in Model)
    {
        <li><a href="@Url.Action("EmailTitles", "Home", new { folderId = folder.Id })">@folder.DisplayName</a></li>
    }
</ul>



Modify the previously created Emailtitles.cshtml file.



Modify it as shown below and save.

@model IEnumerable<Identity.Models.EmailViewModel>

<h2>Emails</h2>
<ul>
    @foreach (var email in Model)
    {
        <li><a href="@Url.Action("EmailDetails", "Home", new { messageId = email.Id })">@email.Subject</a></li>
    }
</ul>



Create EmailDetails.cshtml in the same manner as the previously created files.

EmailDetails.cshtml -> Add

@model Identity.Models.EmailDetailsViewModel

<h2>@Model.Subject</h2>
<div>
    @Html.Raw(Model.BodyContent)
</div>



Start Debugging



Access the path /home/mailfolders.



The list of folders is displayed. Click on Inbox.



You can now see the list of emails in the Inbox. Click on the email subject to view more details.



The email body is displayed.



Proceed with the Publish and IIS deployment process as in the previous post. Verify the functionality as shown below.



반응형
반응형

Last Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (2) Publishing an ASP.NET Sample Page to IIS





In this post, we will create a login page in IIS using an M365 (Entra ID) sample login page.

https://youtu.be/hb7ZDVwJWEE



Launch Visual Studio -> Create a new project



ASP.NET Core Web App (Model-View-Controller)



Specify the Project name-> Next



Authentication type -> Microsoft identity platform -> Create



Next



Sign in -> Microsoft



Log in with the administrator account.



Create new



A browser window pops up. Log in with the administrator account.



Authentication complete.



Specify the Display name. -> Register



Confirm that the creation is successful.-> Next



Add Microsoft Graph permissions -> Next



Save the Client secret value in a notepad.-> Next



Finish



Close



Close



Service is registered, and verify that Secrets.json (Local) has been created.



Double-click on the Appsettings.json file.



The information for the created app is displayed.



The same information is confirmed in Entra ID.



Start Debugging



After accessing localhost, you're redirected directly to the login page -> Log in with the administrator account.



Upon first access, the permissions are displayed as shown below -> Click Accept. -> Accept



Display the logged-in account information.



When you sign out, the following message is displayed.



When you log in with a different account, it displays the information of that account.



Build -> Identity



Web Server (IIS) -> Next



Web Deploy Package -> Next

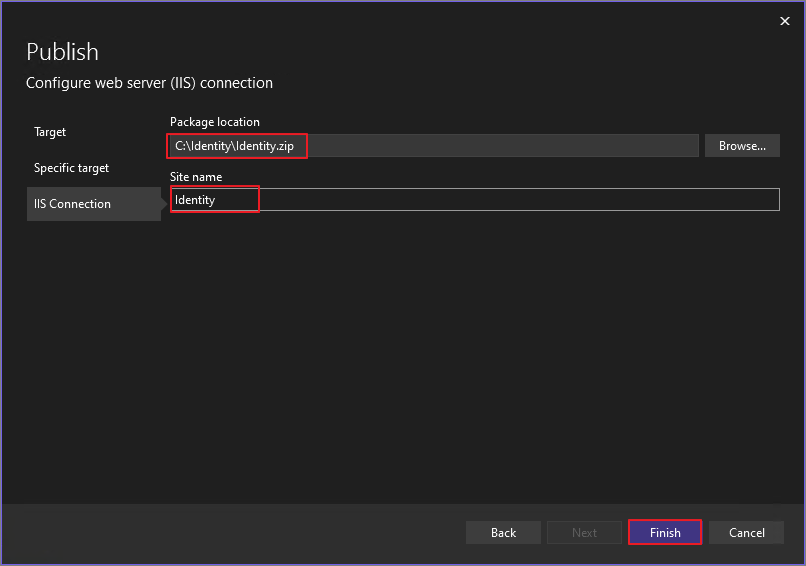

Specify the location to export the package -> Set the Site Name -> Click Finish.



Close



Publish



Once completed, copy the package file to the IIS Server.



As done in the previous post, after extracting the files, copy the essential folders and files, such as wwwroot, to the root directory as shown below.



Launch IIS Manager



Righ-Click on Sites -> Add Website



Specify the settings as shown below.



When testing on localhost, an Error 500 occurs as shown below. The cause is that the ClientSecret value is not included during publishing, which leads to this issue.



Open the Appsettings.json file using Notepad.



Add the previously saved Secret Value in the following format -> Save the file:



IISRESET



Confirm the login process.



Proceed with testing by accessing the published URL.



A Redirect URI error has occurred.



Entra ID Admin center -> Applications -> App registration -> Authentication -> Add the following to Redirect URIs as shown below.



Confirm the login process.\

반응형
반응형

Previous Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (1) Setting up the basic testing environment.



In this post, we will cover the process of publishing an ASP.NET Sample Page to IIS. Since most Microsoft solutions are based on ASP.NET, I thought this would be a necessary step before testing Graph.



https://youtu.be/6z7HdW6IoCI





Launch Visual Studio.



File -> New -> Project



ASP.NET Core Web App (Model-View-Controller) -> Next



Next



Verify that the Framework is set to .NET 8.0 -> Click "Create" (You will need to install the Runtime and SDK version 8.0 on IIS to match this setting.)



Solution Explorer -> Controllers -> Add -> Controller



MVC Controller - Empty -> Add



Name the controller as HelloWorldController. -> Add





Right-Click on Views -> Add -> New Folder



Name it HelloWorld.



Right-click on HelloWorld.-> Add -> New Item



If the following options appear, select Show All Templates.



Razor View - Empty -> Confirm the name as Index.cshtml. -> Add



Verify that it has been created under the HelloWorld folder.



다음과 같이 입력합니다.

ViewData["Title"] = "Index";

<h2>Index</h2>
<p>Hello from the HelloWorld view!</p>



Debug -> Start Debugging



If any messages related to SSL certificates appear, click "Yes" for all of them.



Yes



Yes



Yes



The sample page is now accessible in Edge.



When you access /HelloWorld, it is displayed as follows:



Now, let's proceed with creating the sample page as a site in IIS.

Build -> Publish [Project Name]



Web Server (IIS) -> Next



Web Deploy Package -> Next



Specify the location. -> Site name 지정 -> Finish



Click Publish.



It will be generated as shown below. Now, copy the files to the IIS server.



After copying, extract the files.



After extracting, move the files to a subfolder as shown below -> Copy the folder and files to the root directory (C:\Sample).



Copy completed.



Launch IIS Manager.



Sites -> Add Website



Proceed with the creation process as shown below. (For the certificate, specify the one that was previously created.)



Confirm that the creation is successful.



Application Pools -> Double-click on **Sample**.



.NET CLR version -> Change the setting to **No Managed Code**.



IISRESET



Access localhost to verify the setup.



Once DNS registration and certificate binding are completed, test the published URL.

반응형
반응형

When testing Exchange Online and M365, there are times when an environment related to Graph API is needed. In the past, I would have skipped anything related to development, but now ChatGPT can generate sample pages to some extent.

Without any prior development knowledge, I will build a test environment using the knowledge gained from ChatGPT, based on IIS. The ultimate goal is to integrate Microsoft Graph, and I will post about the necessary components along the way.

In this post, I will cover installing Visual Studio 2022 and configuring the IIS Server.



https://youtu.be/LRoFa0EX-iA





Step 1. Installing Visual Studio 2022

Download Visual Studio 2022

https://visualstudio.microsoft.com/downloads/





Run the installation file.





Continue





Check ASP.NET -> Install





Proceed with the installation.





Installation complete -> Verify by running the application.





Step 2. Setting up the IIS Server

I proceeded with the installation separately from the VM where Visual Studio is installed.



Server Manager -> Add roles and features



Check IIS





Check the following features:

URL Authorization

Windows Authentication

Tracing

.NET Extensibility 4.8

.ASP.NET 4.8

WebSocket Protocol





After completing the IIS installation, install the necessary .NET components.



.NET Core Hosting Bundle installer

https://dotnet.microsoft.com/permalink/dotnetcore-current-windows-runtime-bundle-installer



Install .Net SDK 8.0

https://dotnet.microsoft.com/en-us/download/dotnet/8.0





Run PowerShell to check the installed version.

dotnet --list-sdks
dotnet --list-runtimes





In the next post, I will cover how to create an ASP.NET sample page in Visual Studio.

반응형

+ Recent posts
