Previous Post: 2025.08.10 - [Microsoft 365] - Microsoft 365 Log Management (1): Getting Started with Sentinel

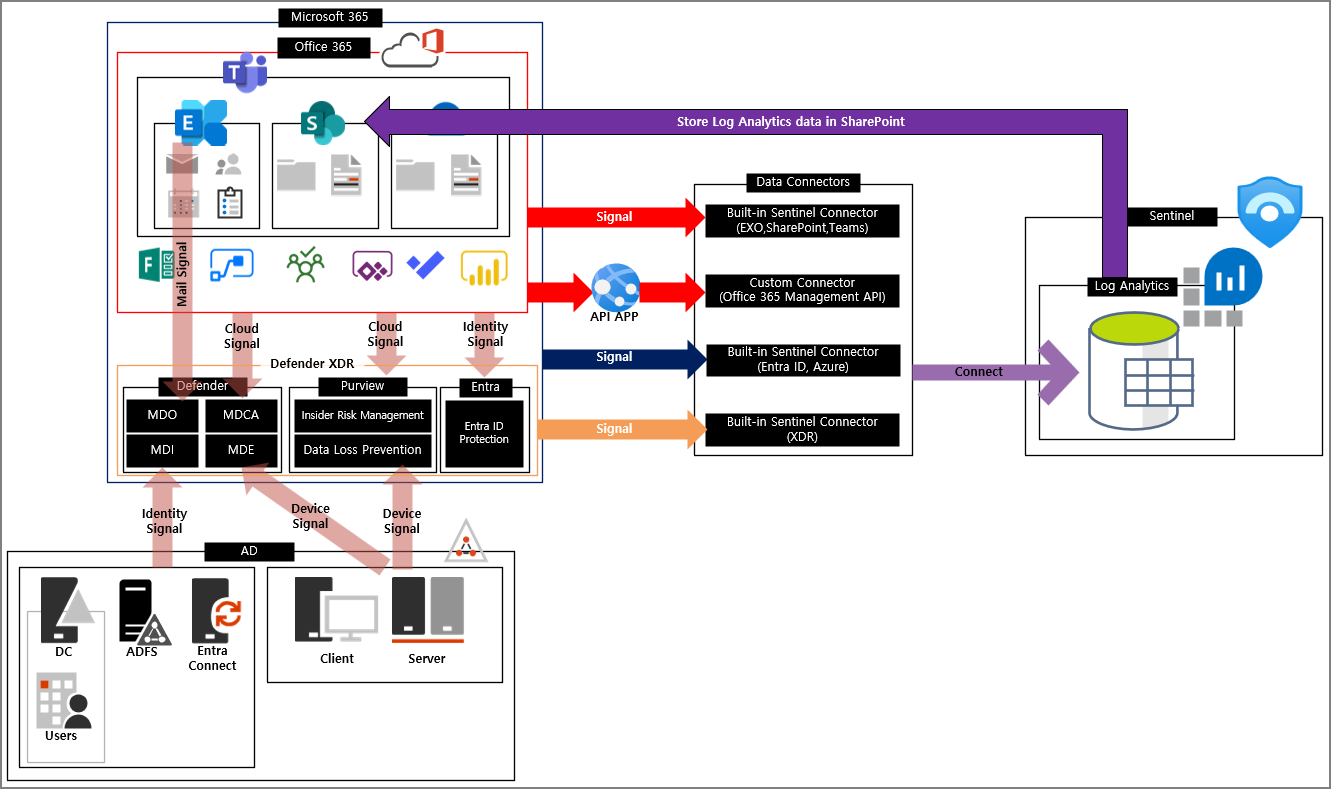

In the previous post, we explored how to enable Microsoft Sentinel and start collecting Microsoft 365 logs.
This time, we’ll focus on integrating Microsoft Defender for Identity (MDI) logs into Sentinel and preparing them for Power BI visualization.

Youtube: Microsoft 365 Log Management (2): Connecting MDI Logs to Sentinel and Power BI

Step 1. Verify MDI Activation

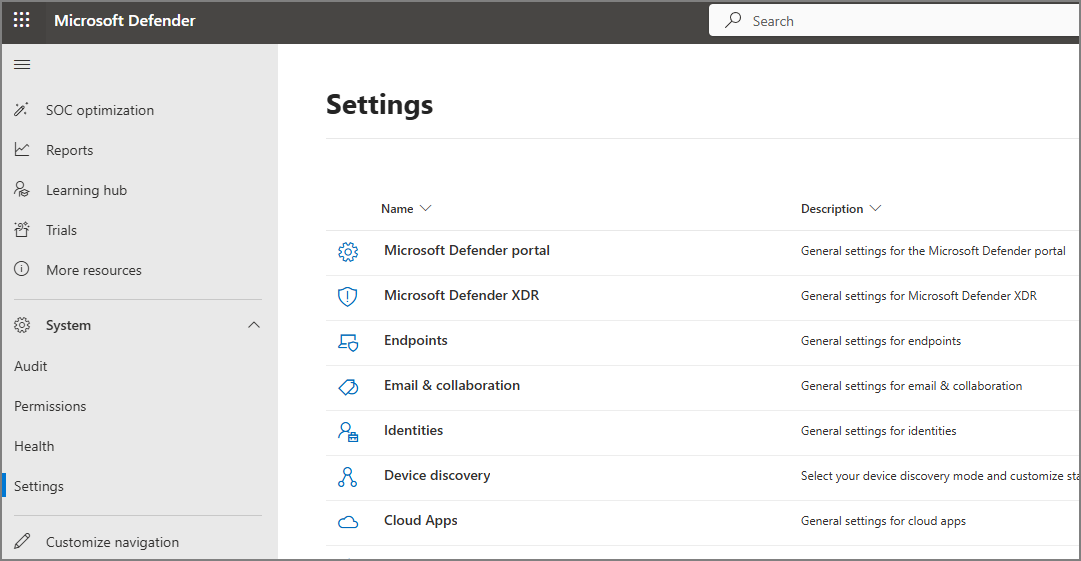

Navigation Path: System → Settings → Identities

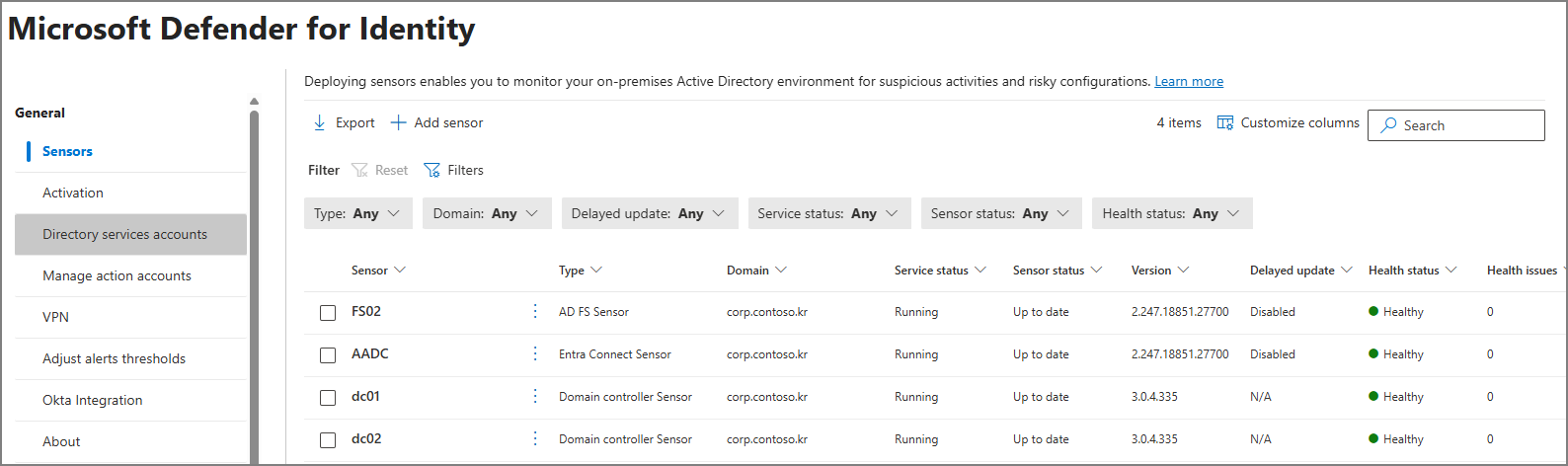

Check Sensor Activation:
With the latest MDI v3, activation is much simpler—if your Domain Controller is already onboarded to Microsoft

Defender for Endpoint (MDE), MDI can be enabled without additional steps.

(A separate post will cover the new version once it’s officially released.)

Verify Signals:

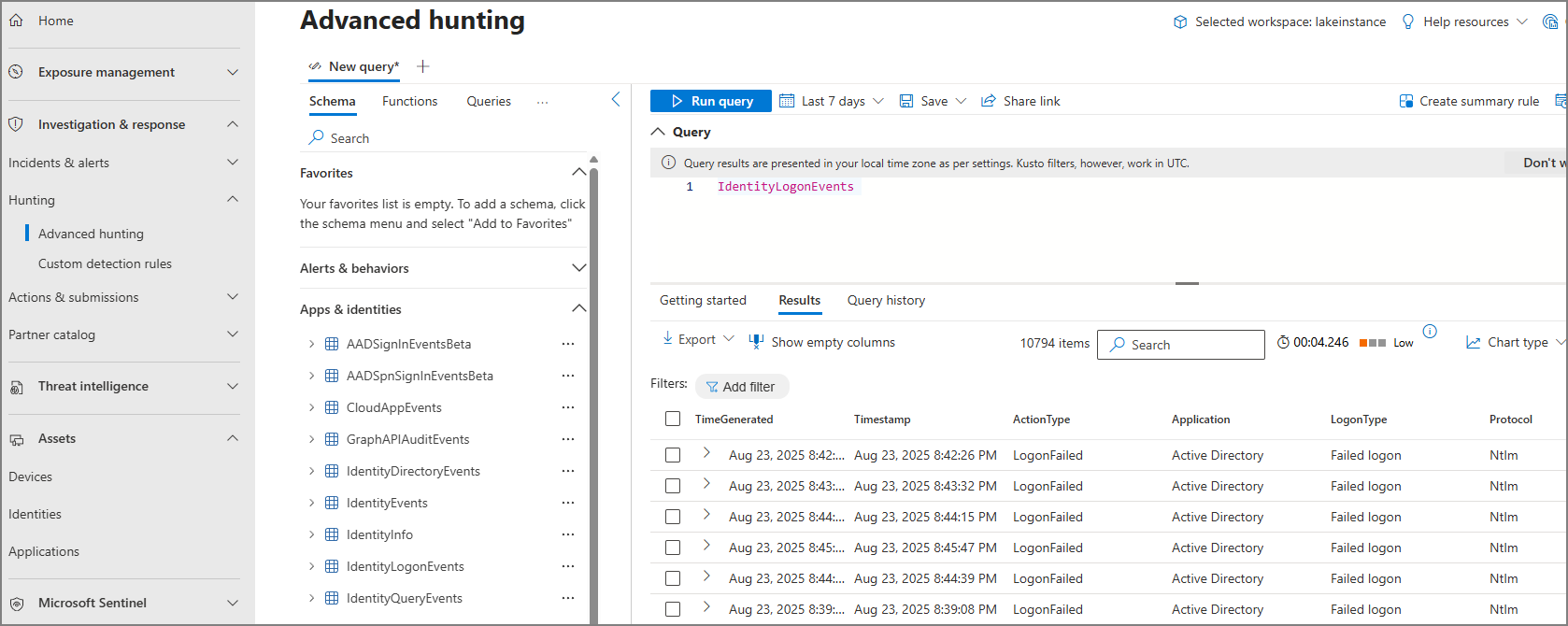

Go to Advanced Hunting and confirm that IdentityLogonEvents are being recorded.

→ If signals appear here, you can confirm that Sentinel is also receiving MDI logs.

Connector Setup:

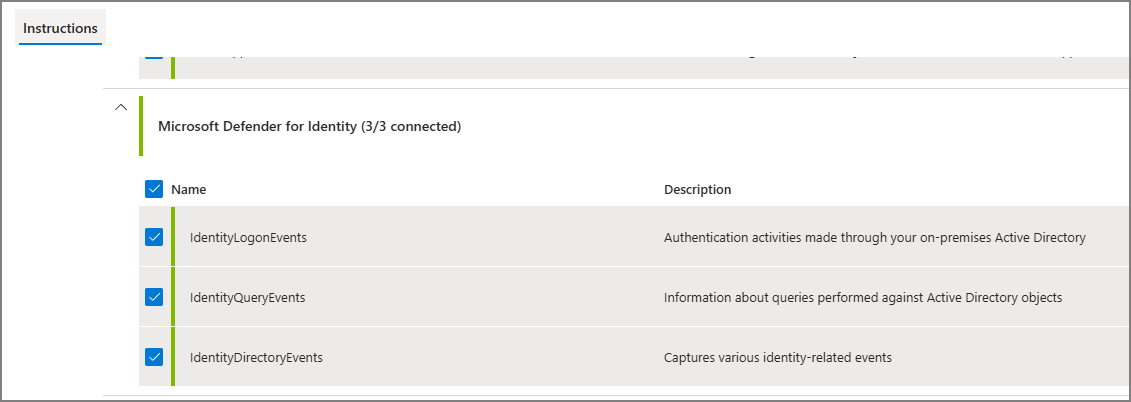

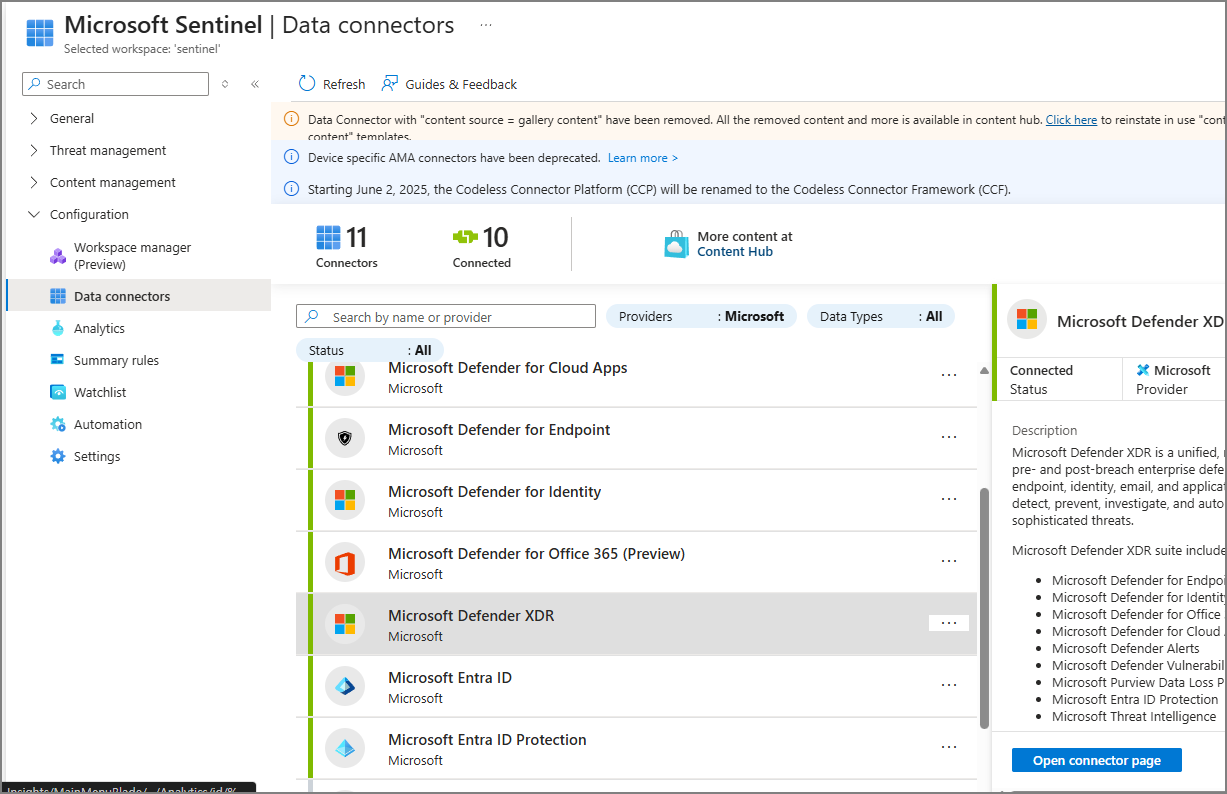

Navigate to Microsoft Defender XDR → Open connector page.

→ Enable Microsoft Defender for Identity and save.

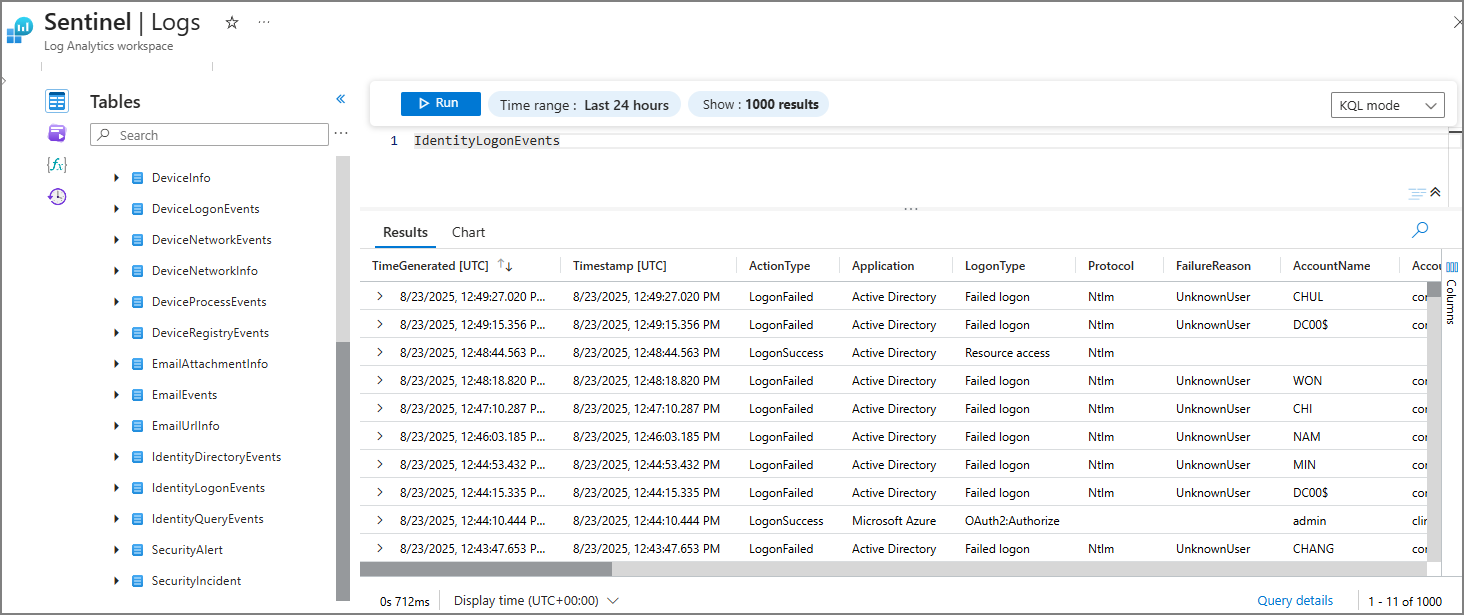

After a short delay, you should be able to query MDI logs in Sentinel.

Step 2. Register an Enterprise App for Sentinel Log Export

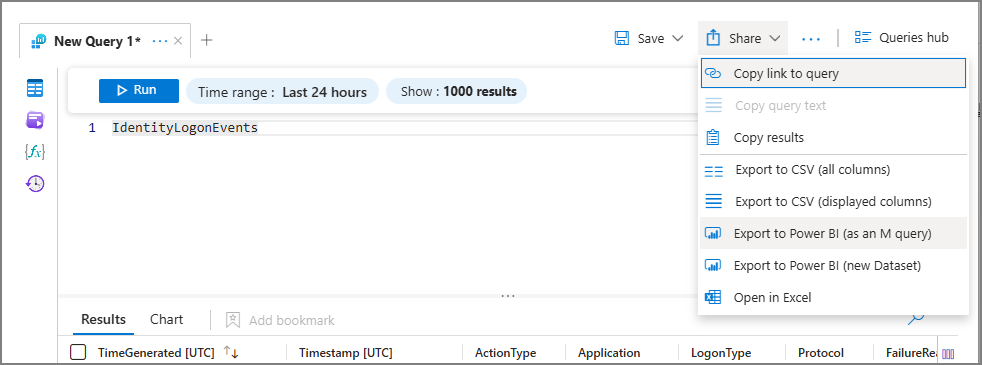

Currently, Advanced Hunting and Sentinel have limitations when running large queries.

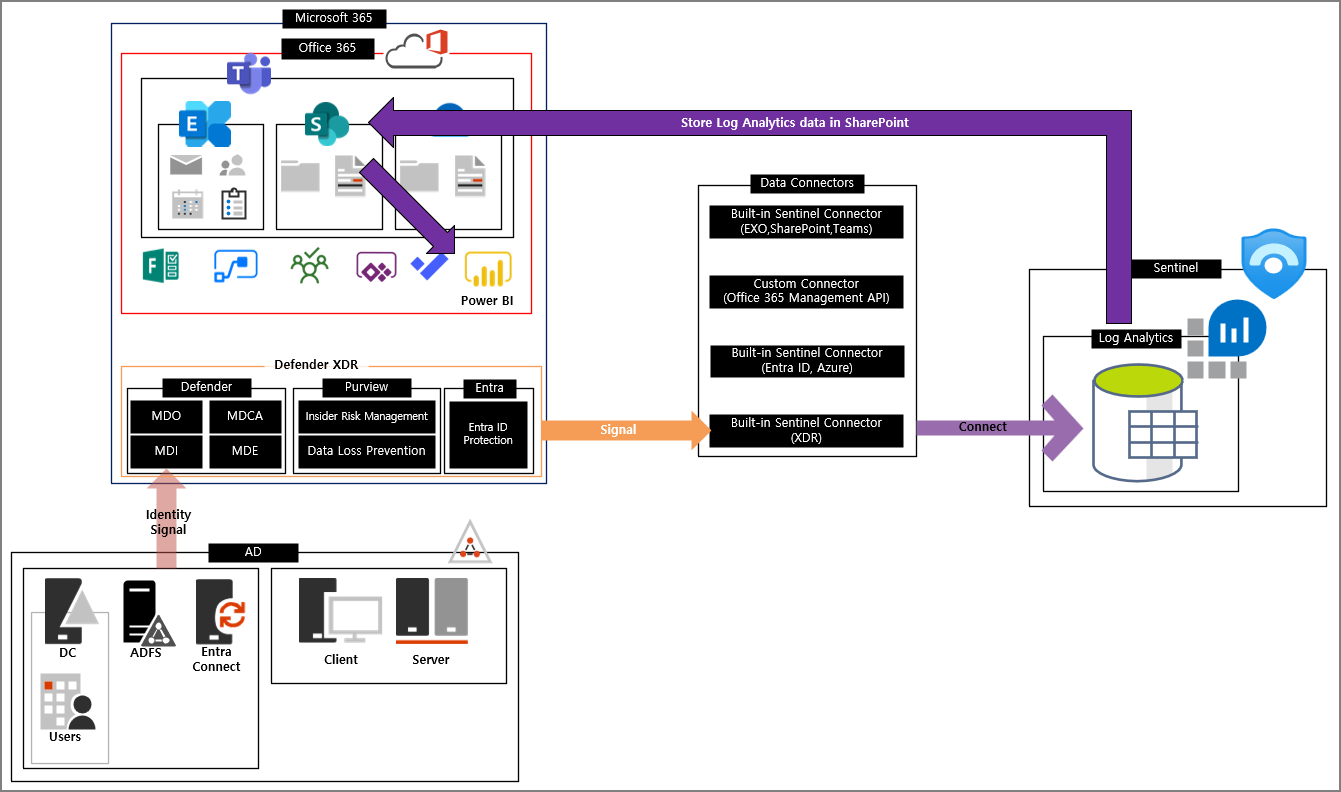

Our ultimate goal is to visualize data in Power BI, so we’ll first store logs as CSV files in SharePoint.

To achieve this, we’ll use the Log Analytics API, which requires Enterprise App registration.

Registration Steps

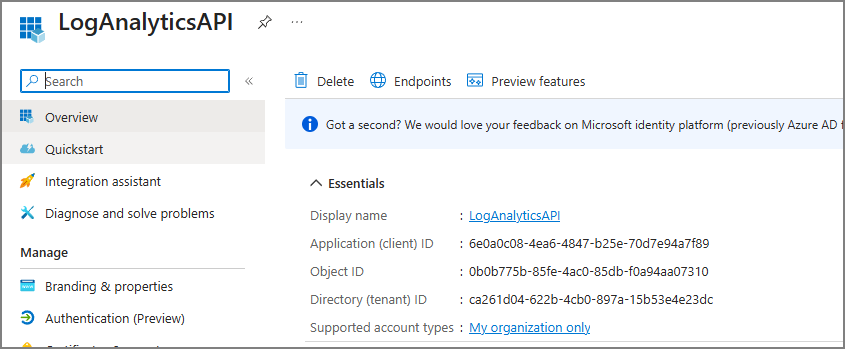

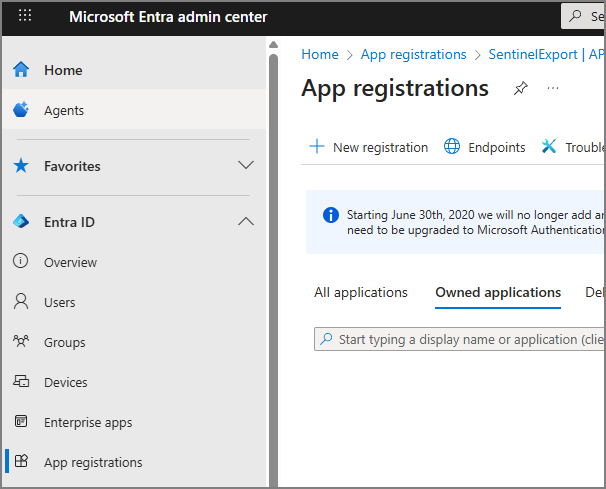

1. Go to Entra Admin Center → App registrations → New registration

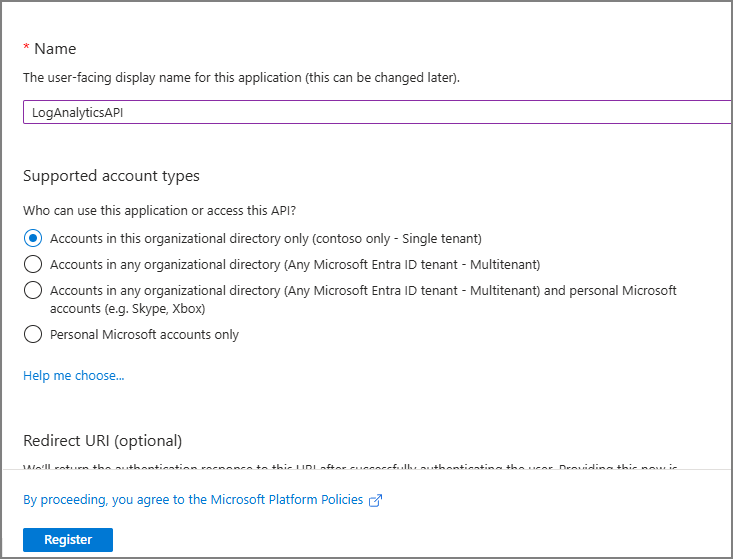

2. Name the app → Register

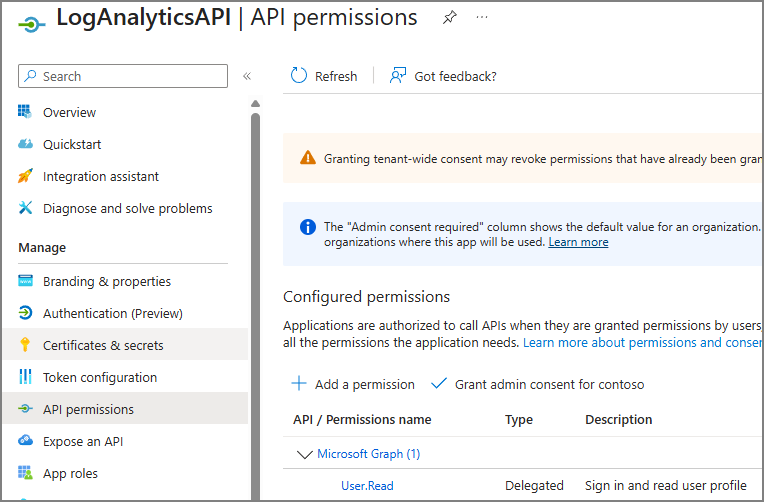

3. Navigate to API permissions → Add a permission

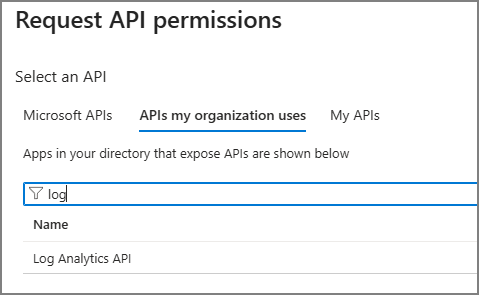

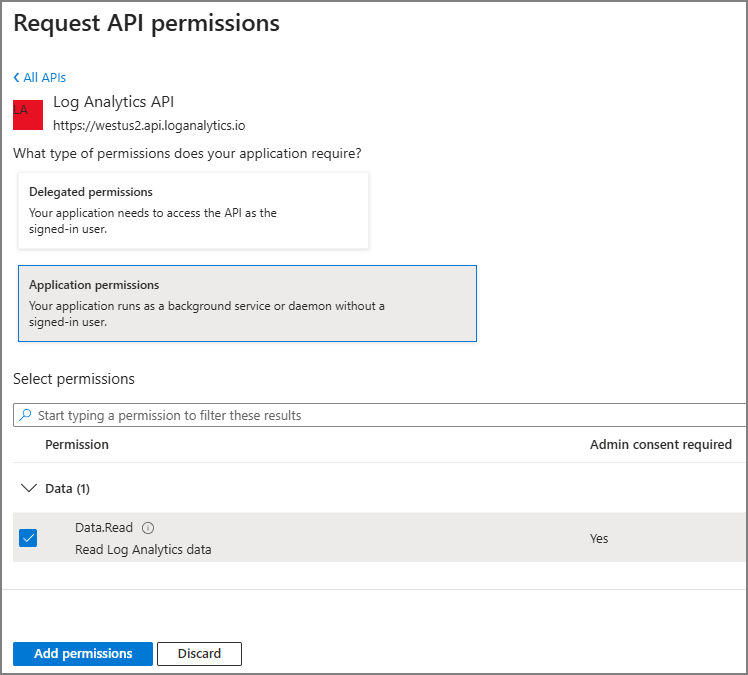

4. Select APIs my organization uses → Log Analytics API

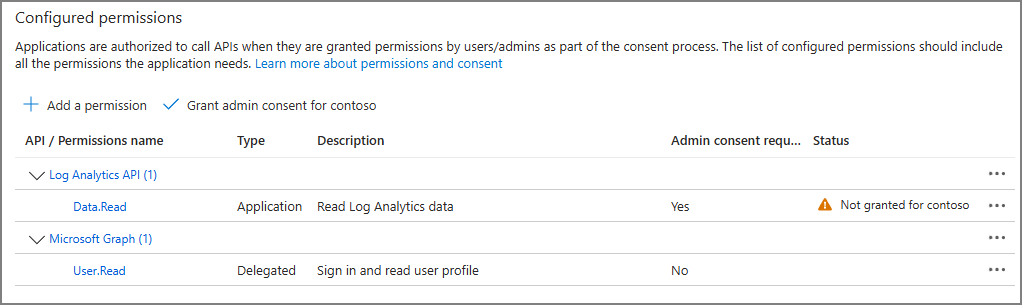

5. Check Data.Read → Add permissions

6. Click Grant admin consent

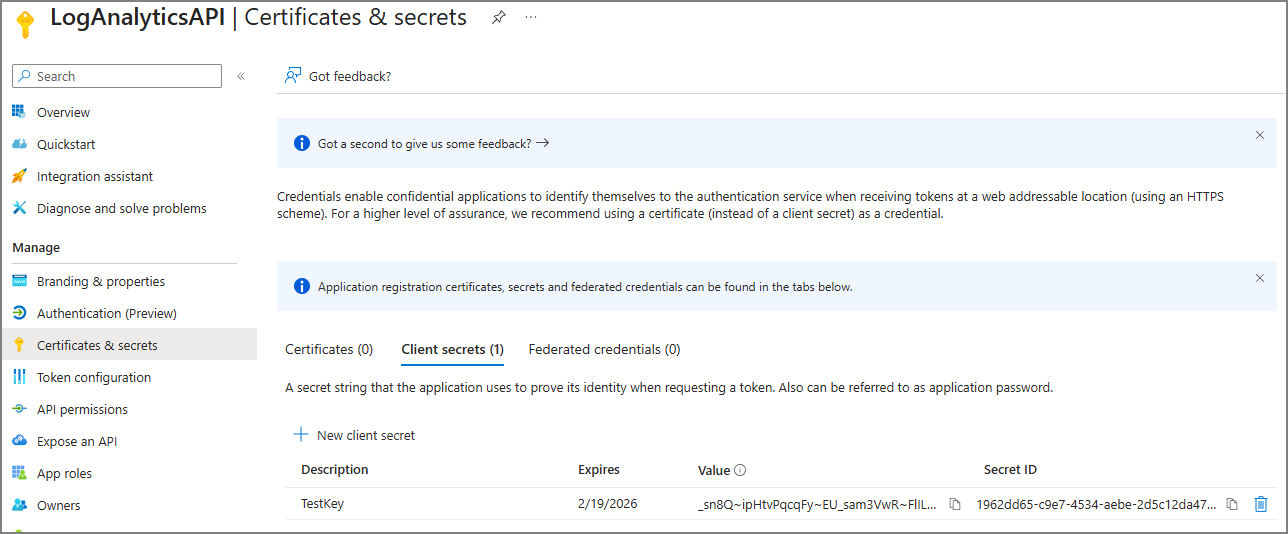

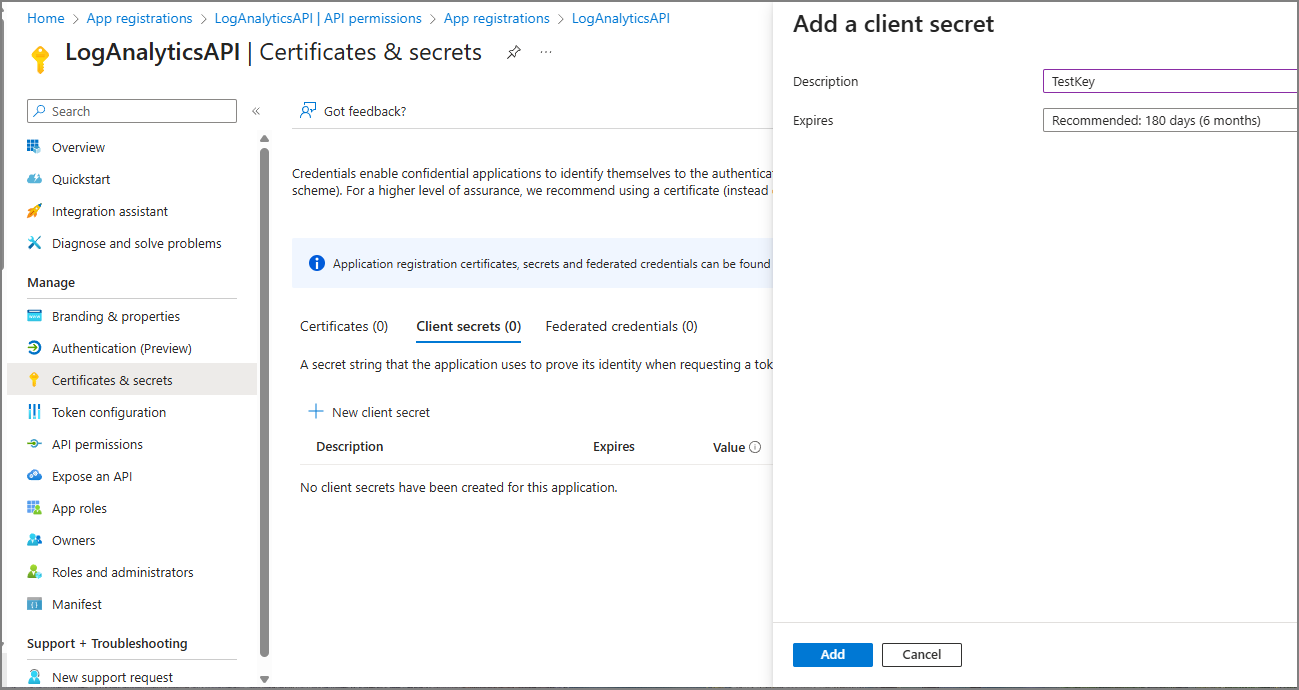

7. Go to Certificates & secrets → New client secret → Add

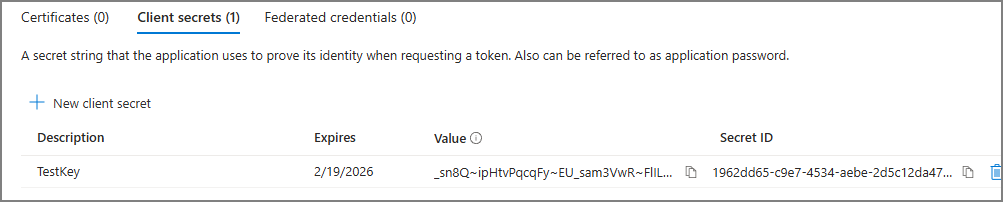

8. Copy the generated Value and store it securely

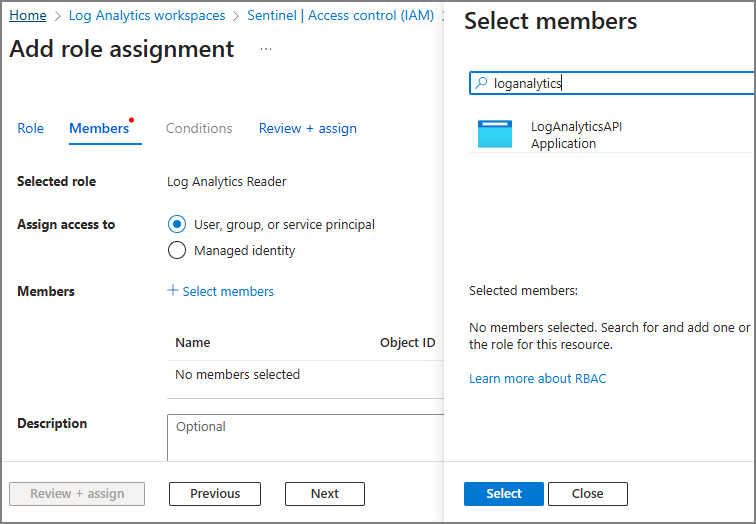

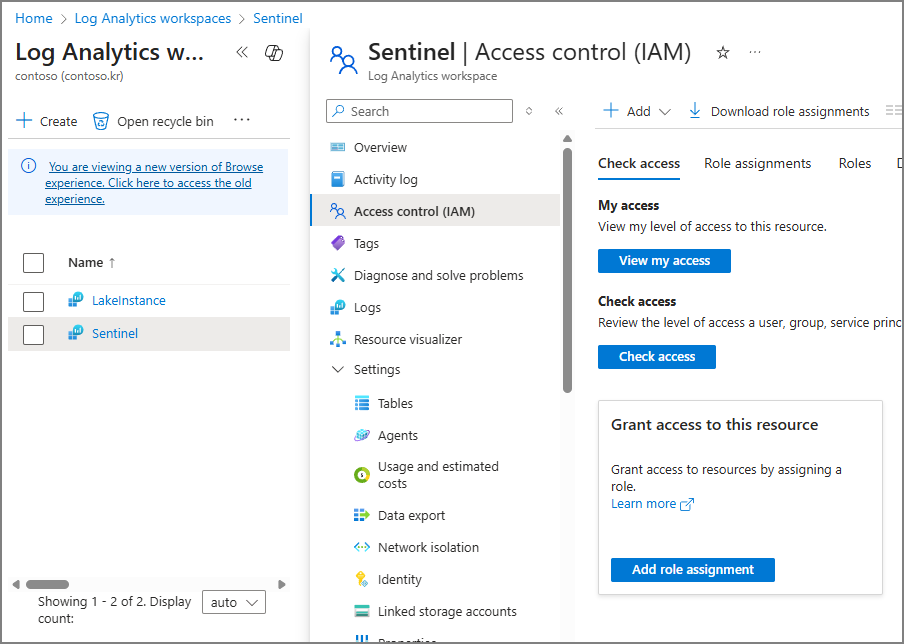

9. In Log Analytics Workspaces → Access control (IAM), click Add role assignment

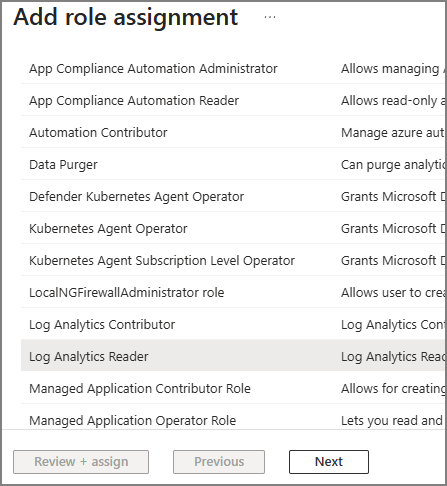

10. Assign Log Analytics Reader role

11. Grant the role to the newly created app

Step 3. Export Logs to CSV

Tenant ID & Client ID

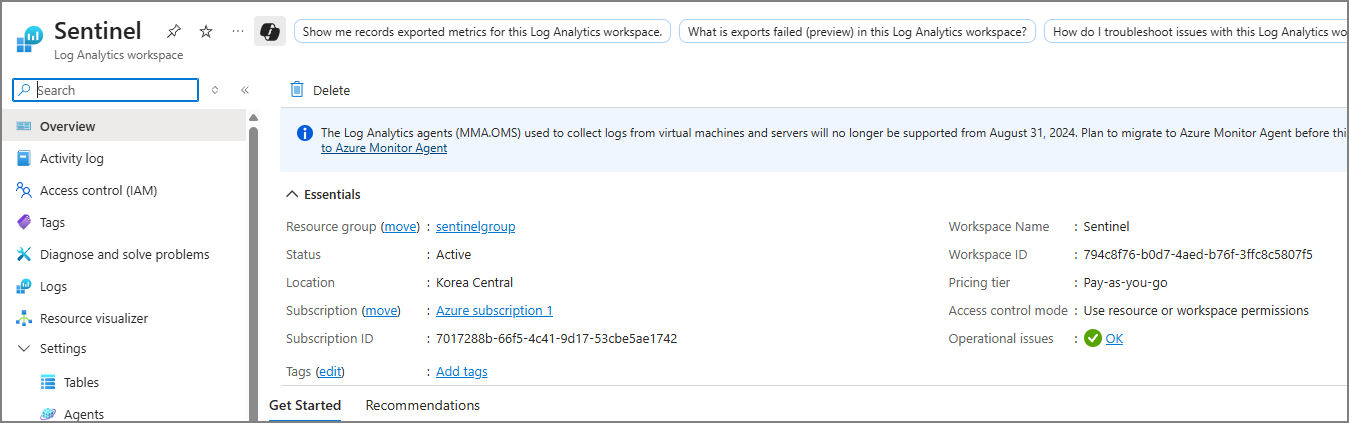

Workspace ID

Client Secret

Once these values are ready, you can use a PowerShell script to call the Log Analytics API and export logs in chunks.

I created the following script to call the Log Analytics API using AI.

You’ll need the following details for the script:

# === Authentication (Service Principal) ===
$TenantId = "<TENANT_ID>"
$ClientId = "<CLIENT_ID>"
$Secret   = "<CLIENT_SECRET>"

# === Workspace ===
$WorkspaceId = "<WORKSPACE_ID>"

# === Extraction target / Period / Output ===
$Table        = "IdentityLogonEvents"
$StartUtc     = [datetime]"2025-08-12T00:00:00Z"
$EndUtc       = [datetime]::UtcNow
$ChunkHours   = 6
$OutDir       = "F:\sentinel\IdentityLogonEvents"
$FilePrefix   = "IdentityLogonEvents"
$SkipExisting = $true

# === Interval / Retry / Timeout ===
$MinIntervalSeconds = 30
$HttpTimeoutSeconds = 300
$MaxRetries         = 5
$BaseDelaySeconds   = 5

<# ======================= Utilities ======================= #>

# Create folder
New-Item -ItemType Directory -Force -Path $OutDir | Out-Null

# Token cache
$Script:TokenInfo = $null

function Get-LogAnalyticsToken {
    if ($Script:TokenInfo -and $Script:TokenInfo.ExpiresOn -gt (Get-Date).ToUniversalTime().AddMinutes(5)) {
        return $Script:TokenInfo.AccessToken
    }

    $body = @{
        client_id     = $ClientId
        client_secret = $Secret
        grant_type    = "client_credentials"
        scope         = "https://api.loganalytics.io/.default"
    }

    $tokenResponse = Invoke-RestMethod -Method Post `
        -Uri "https://login.microsoftonline.com/$TenantId/oauth2/v2.0/token" `
        -Body $body `
        -TimeoutSec $HttpTimeoutSeconds

    $Script:TokenInfo = [pscustomobject]@{
        AccessToken = $tokenResponse.access_token
        ExpiresOn   = (Get-Date).ToUniversalTime().AddSeconds([int]$tokenResponse.expires_in)
    }
    return $Script:TokenInfo.AccessToken
}

function Invoke-LAQuery {
    param(
        [Parameter(Mandatory=$true)] [string] $Kql,
        [Parameter(Mandatory=$true)] [string] $WorkspaceId
    )

    $attempt = 0
    while ($true) {
        $attempt++
        $token = Get-LogAnalyticsToken
        $headers = @{ Authorization = "Bearer $token" }
        $body    = @{ query = $Kql } | ConvertTo-Json

        try {
            return Invoke-RestMethod -Method Post `
                -Uri "https://api.loganalytics.azure.com/v1/workspaces/$WorkspaceId/query" `
                -Headers $headers -ContentType "application/json" `
                -Body $body -TimeoutSec $HttpTimeoutSeconds
        }
        catch {
            $status = $_.Exception.Response.StatusCode.value__
            $resp   = $null
            try { $resp = [System.IO.StreamReader]::new($_.Exception.Response.GetResponseStream()).ReadToEnd() } catch {}

            # 401: Refresh token
            if ($status -eq 401 -and $attempt -le $MaxRetries) {
                $Script:TokenInfo = $null
                Start-Sleep -Seconds ($BaseDelaySeconds * [math]::Pow(2, $attempt - 1))
                continue
            }

            # 429 or 5xx
            if (($status -eq 429 -or $status -ge 500) -and $attempt -le $MaxRetries) {
                $retryAfter = 0
                try { $retryAfter = [int]$_.Exception.Response.Headers["Retry-After"] } catch {}
                if ($retryAfter -le 0) {
                    $retryAfter = [int]($BaseDelaySeconds * [math]::Pow(2, $attempt - 1))
                }
                Write-Warning "Query throttled/failed (status $status). Retry in $retryAfter sec. Attempt $attempt/$MaxRetries"
                Start-Sleep -Seconds $retryAfter
                continue
            }

            throw "Log Analytics query failed (status $status): $resp"
        }
    }
}

function Convert-RowsToObjects {
    param(
        [Parameter(Mandatory=$true)] $ResultTable
    )
    $cols = $ResultTable.columns.name
    $rows = $ResultTable.rows | ForEach-Object {
        $o = [ordered]@{}
        for ($i=0; $i -lt $cols.Count; $i++) { $o[$cols[$i]] = $_[$i] }
        [pscustomobject]$o
    }

    foreach ($row in $rows) {
        foreach ($p in $row.PSObject.Properties) {
            $v = $p.Value
            if ($v -is [System.Collections.IDictionary] -or
                $v -is [System.Array] -or
                $v -is [PSCustomObject]) {
                $row.($p.Name) = ($v | ConvertTo-Json -Compress -Depth 50)
            }
        }
    }
    return $rows
}

function Wait-ForRateLimit($startedAt, [int]$minSeconds) {
    $elapsed = [int]((Get-Date).ToUniversalTime() - $startedAt).TotalSeconds
    $remain  = $minSeconds - $elapsed
    if ($remain -gt 0) { Start-Sleep -Seconds $remain }
}

<# ======================= Query Loop ======================= #>

$cursor = $StartUtc
while ($cursor -lt $EndUtc) {
    $iterStart = [datetime]::UtcNow

    $chunkStart = $cursor
    $chunkEnd   = $cursor.AddHours($ChunkHours)
    $cursor     = $chunkEnd

    $stamp   = $chunkStart.ToString("yyyyMMddHHmm")
    $outFile = Join-Path $OutDir ("{0}{1}.csv" -f $FilePrefix, $stamp)
    if ($SkipExisting -and (Test-Path $outFile)) {
        Write-Host "Skip: $outFile"
        Wait-ForRateLimit $iterStart $MinIntervalSeconds
        continue
    }

    $startIso = $chunkStart.ToString("yyyy-MM-ddTHH:mm:ssZ")
    $endIso   = $chunkEnd.ToString("yyyy-MM-ddTHH:mm:ssZ")

    $kql = @"
$Table
| where TimeGenerated >= datetime('$startIso')
| where TimeGenerated <  datetime('$endIso')
| order by TimeGenerated asc
"@

    Write-Host ("Query {0}Z ~ {1}Z" -f $chunkStart.ToString("s"), $chunkEnd.ToString("s"))

    try {
        $r = Invoke-LAQuery -Kql $kql -WorkspaceId $WorkspaceId

        if (-not $r.tables -or $r.tables.Count -eq 0 -or -not $r.tables[0]) {
            Write-Host "  -> No result table."
        } else {
            $rows = Convert-RowsToObjects -ResultTable $r.tables[0]
            if ($rows -and $rows.Count -gt 0) {
                $rows | Export-Csv -Path $outFile -NoTypeInformation -Encoding UTF8
                Write-Host ("  -> {0} rows -> {1}" -f $rows.Count, $outFile)

                if ($rows.Count -ge 450000) {
                    Add-Content -Path (Join-Path $OutDir "_oversized.txt") -Value "$startIso~$endIso,$($rows.Count)"
                    Write-Warning "Result very large ($($rows.Count) rows). Consider reducing chunk size for this period."
                }
            } else {
                Write-Host "  -> No rows."
            }
        }
    }
    catch {
        Write-Warning "Error range: $startIso ~ $endIso"
        Write-Warning "Error: $($_.Exception.Message)"
        Add-Content -Path (Join-Path $OutDir "_failed.txt") -Value "$startIso~$endIso"
    }

    Wait-ForRateLimit $iterStart $MinIntervalSeconds
}

Write-Host "Done. Output dir: $OutDir"

Tip: Adjust ChunkHours and MinIntervalSeconds to avoid hitting API throttling limits.

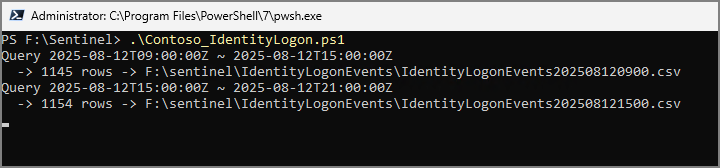

When everything is configured correctly, the export process will look like this:

Step 4. Connect Power BI (Load CSV from SharePoint)

The Sentinel Data Lake feature is currently available in preview, but it appears that Power BI integration is not yet supported.
For now, we’ll store the data in SharePoint Online, which is a cost-effective option, and then aggregate it in Power BI.

Upload CSV to SharePoint

Power BI Desktop  Get Data  Blank query

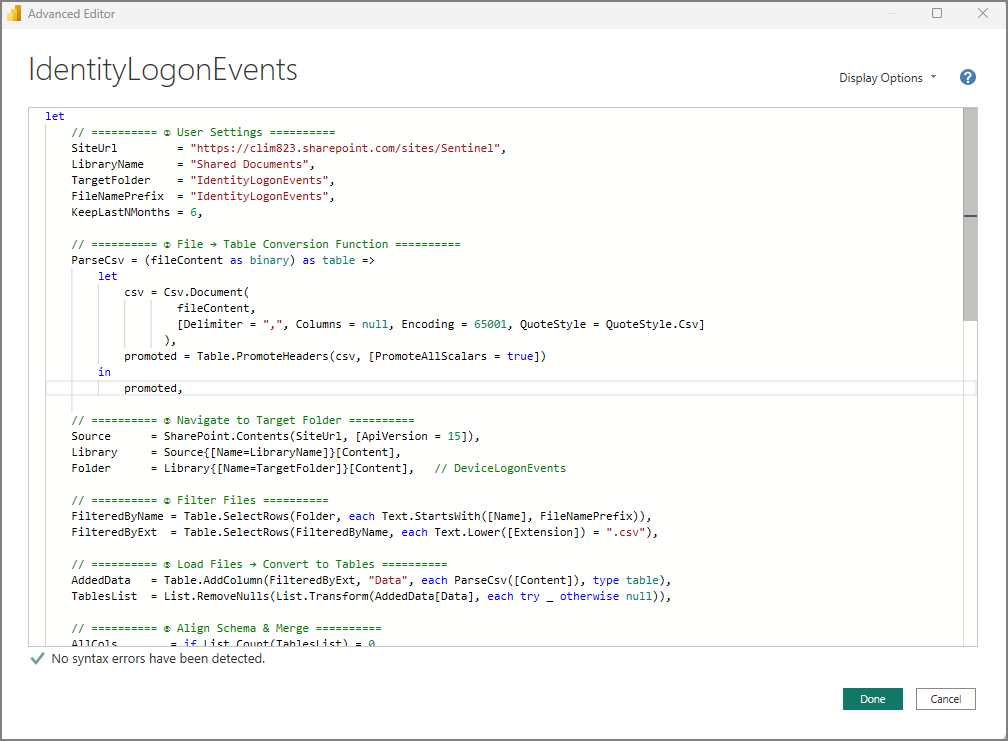

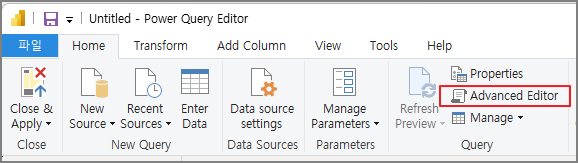

Advanced Editior

Paste the query below. (This was created with the help of AI.)

let
    // ========== ① User Settings ==========
    SiteUrl         = "https://clim823.sharepoint.com/sites/Sentinel",
    LibraryName     = "Shared Documents",
    TargetFolder    = "IdentityLogonEvents",
    FileNamePrefix  = "IdentityLogonEvents",
    KeepLastNMonths = 6,

    // ========== ② File → Table Conversion Function ==========
    ParseCsv = (fileContent as binary) as table =>
        let
            csv = Csv.Document(
                    fileContent,
                    [Delimiter = ",", Columns = null, Encoding = 65001, QuoteStyle = QuoteStyle.Csv]
                  ),
            promoted = Table.PromoteHeaders(csv, [PromoteAllScalars = true])
        in
            promoted,

    // ========== ③ Navigate to Target Folder ==========
    Source      = SharePoint.Contents(SiteUrl, [ApiVersion = 15]),
    Library     = Source{[Name=LibraryName]}[Content],
    Folder      = Library{[Name=TargetFolder]}[Content],   // DeviceLogonEvents

    // ========== ④ Filter Files ==========
    FilteredByName = Table.SelectRows(Folder, each Text.StartsWith([Name], FileNamePrefix)),
    FilteredByExt  = Table.SelectRows(FilteredByName, each Text.Lower([Extension]) = ".csv"),

    // ========== ⑤ Load Files → Convert to Tables ==========
    AddedData   = Table.AddColumn(FilteredByExt, "Data", each ParseCsv([Content]), type table),
    TablesList  = List.RemoveNulls(List.Transform(AddedData[Data], each try _ otherwise null)),

    // ========== ⑥ Align Schema & Merge ==========
    AllCols        = if List.Count(TablesList) = 0
                     then {}
                     else List.Distinct(List.Combine(List.Transform(TablesList, each Table.ColumnNames(_)))),
    AlignedTables  = List.Transform(TablesList, each Table.ReorderColumns(_, AllCols, MissingField.UseNull)),
    Appended       = if List.Count(AlignedTables) = 0
                     then #table(AllCols, {})
                     else Table.Combine(AlignedTables),

    // ========== ⑦ Filter by Last N Months ==========
    WithTimestampTyped = if List.Contains(Table.ColumnNames(Appended), "Timestamp")
                         then Table.TransformColumnTypes(Appended, {{"Timestamp", type datetime}})
                         else Appended,

    FilteredByDate =
        if List.Contains(Table.ColumnNames(WithTimestampTyped), "Timestamp")
        then Table.SelectRows(WithTimestampTyped, each [Timestamp] >= Date.AddMonths(DateTime.LocalNow(), -KeepLastNMonths))
        else WithTimestampTyped
in
    FilteredByDate

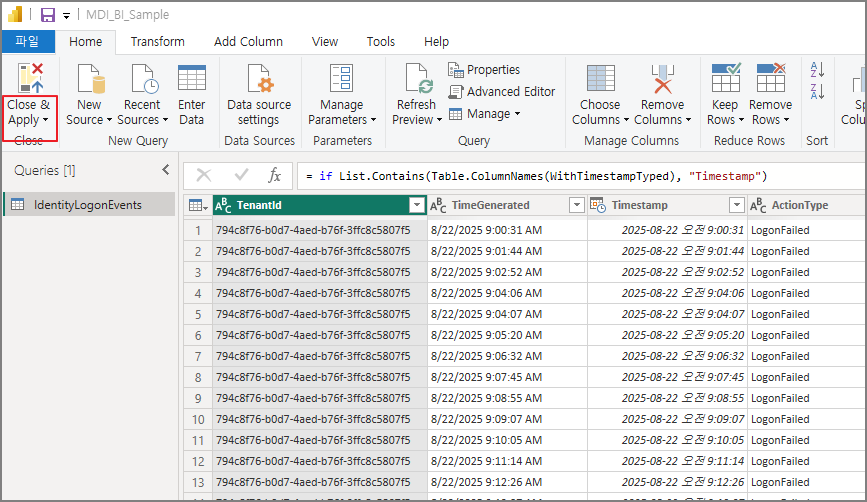

Close & Apply

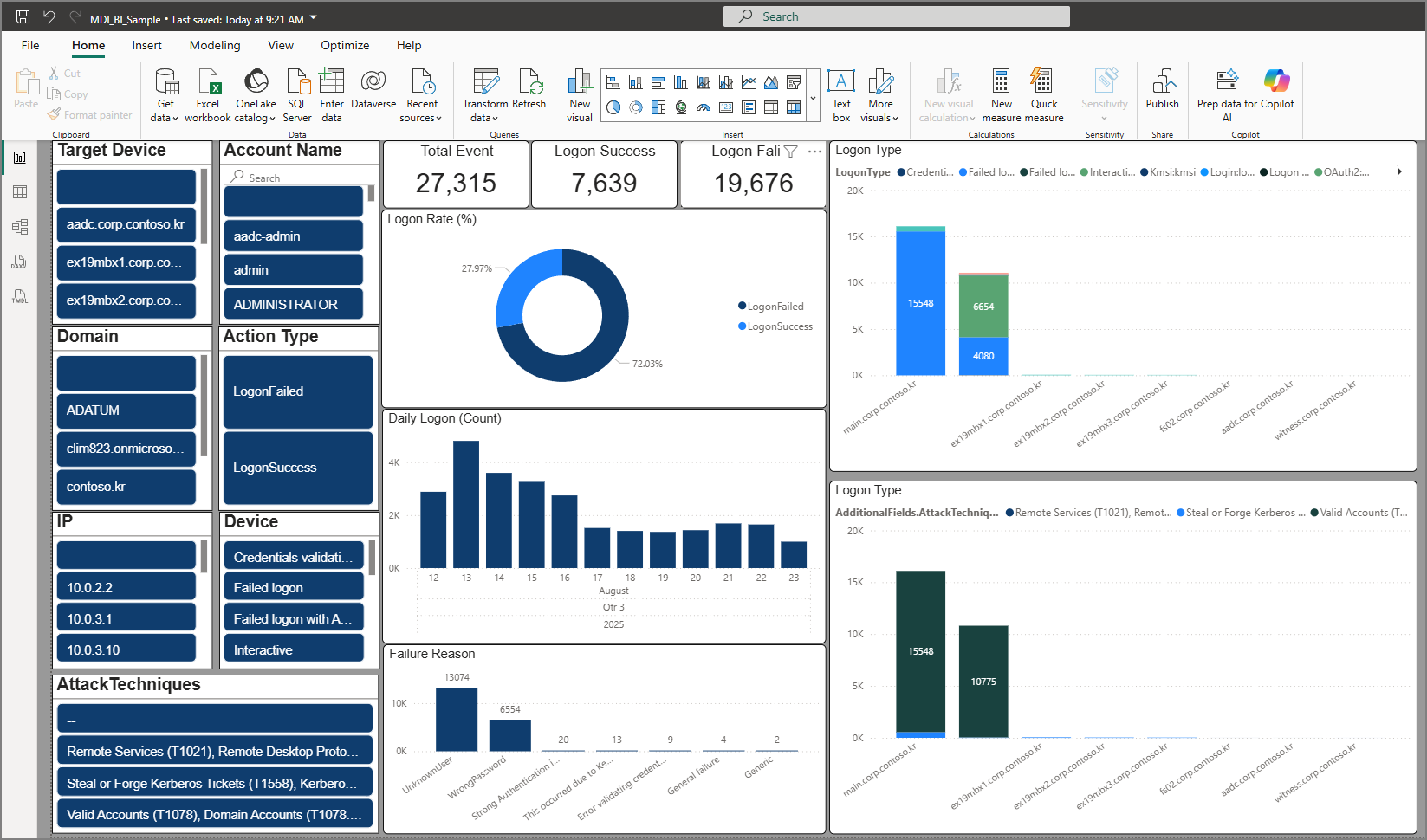

Using this data, you can build dashboards that provide valuable insights into identity-related activities, as shown below.

Why This Matters

By connecting MDI logs to Sentinel and then visualizing them in Power BI, you can:

• Detect suspicious identity activities faster
• Correlate identity signals with other security data
• Build interactive dashboards for security insights

▶ Watch on YouTube: Microsoft 365 Log Management (1): Getting Started with Sentinel

Why Log Management Matters in Microsoft 365

One of the biggest challenges I faced while managing Microsoft 365 was log management.
Initially, message trace and audit logs were enough. But as I started incorporating security solutions like Microsoft Defender, the amount of data skyrocketed.

How We Used to Do It

Previously, I relied on PowerShell scripts to extract logs, store them in a separate repository, and later manage them via SQL Server for analysis.
While this worked, it had several drawbacks:

• Required a dedicated VM for log collection
• Credential management was cumbersome and posed security risks
• Didn’t align well with the SaaS-first approach
• Frequent schema changes and new log types increased maintenance overhead

In short, the process became increasingly labor-intensive.

Why I Chose Microsoft Sentinel

To solve these issues, I turned to Microsoft Sentinel.
Although Sentinel is primarily a SIEM solution, my initial goal is centralized log management. Here’s why Sentinel stood out:

• Native integration with Microsoft 365
• Automated log collection and schema updates
• Easy integration with Defender, Entra, Intune, and more

The Role of AI

Thanks to AI, the barrier to entry for these technologies has dropped significantly.
With Copilot, I can leverage the data stored in Sentinel more intelligently.
Once logs are ingested into Sentinel, it’s like having a database ready for advanced analytics—and AI can answer questions based on that data.

This marks the beginning of a shift from manual log management to a more automated and intelligent approach.

What is Microsoft Sentinel?

Microsoft Sentinel is a cloud-native SIEM (Security Information and Event Management) solution that collects and analyzes security logs and events from multiple sources.
It supports threat detection, automated response, and security operations efficiency.

Learn more: What is Microsoft Sentinel? | Microsoft Learn

Microsoft 365 Log Collection Architecture

Here’s the architecture I’m planning for Microsoft 365 → Sentinel:

• Signals from various Microsoft 365 services are sent to Sentinel via built-in connectors
• However, not all logs are supported by default
• Unsupported logs require API calls or custom connectors

Note: In this post, we’ll focus on enabling Sentinel. Detailed configurations for each service will be covered in future posts.

Steps to Enable Microsoft Sentinel

1. Access Azure Portal
https://portal.azure.com → Search for Sentinel

2. Create a Sentinel Resource

- Create a new resource group

- Create a Log Analytics Workspace

It is just Log Analytics workspace.

Move to Sentinel → Create

- Add Microsoft Sentinel to the workspace

Adding Microsoft Sentinel

3. Add Microsoft 365 Data Connectors
- Go to Content Hub

Currently, Sentinel is being integrated with the Defender page.
If you go to Defender (Security.microsoft.com) and click on Microsoft Sentinel, you can confirm that it is being provisioned.

If you refresh in the Content hub within Sentinel on Azure, you will see the available Content that can be added as shown below.

For a simple connection test, search for Microsoft Entra ID and proceed with the installation.

Data Connectors → Microsoft Entra ID → Open connector page

Select the logs to import and apply changes.

4. Verify Log Collection
- Wait for logs to populate

- Use KQL mode to query and validate data ingestion

What’s Next?

In the next post, I’ll cover enabling specific Microsoft 365 logs and, if needed, the E5 onboarding process.

Tip: If you’re planning to integrate Sentinel with Microsoft 365, start small—enable core connectors first, then expand gradually.

In this post, we will proceed with enabling and testing the Verified ID feature provided by Microsoft.

Entra Admin Center - Verified ID -> Overview -> Get Started

Provisioning

1. Get your new credential -> Try it now

Get my Verified ID

A QR Code is generated.

Run the Authenticator on mobile.

Verified ID -> Scan a QR code

Scan the QR code on the screen.

Add

Completed the addition.

You can check the record by clicking the issued ID.

Clicking "2. Use your new credential -> Try it now" will take you to a page where you can test the Verified ID.

Access discounts

You can log in using a DID instead of account information. Verify my Employee Credential.

QR Code

When the camera recognizes the QR code, the Authenticator is launched through the URL.

When the camera recognizes the QR code, the Authenticator is launched through the URL.

Click "Share" to send the ID information.

Verification completed.

In the Activity section, you can check where your ID has been used.

The test page can be verified with a scenario where employee discounts are applied, as shown below.

In order to reduce confusion between Azure AD and Windows Server AD, Microsoft changed Azure AD to Entra ID, marking the beginning of the Entra product family.

Microsoft renamed Azure AD (Azure Active Directory) to Microsoft Entra ID to convey the product's multi-cloud, multi-platform capabilities, alleviate confusion with Windows Server Active Directory, and integrate it into the Microsoft Entra product family.

관련자료: New name for Azure Active Directory - Microsoft Entra | Microsoft Learn

This change makes sense because the AD people are familiar with is actually Active Directory Domain Services (AD DS). To put it simply, Azure AD only manages identities, while policies for devices joined to Azure AD are managed by Intune's Configuration Profile. In other words, the cloud version of AD is a combination of Azure AD + Intune. It was difficult to explain this concept to those who have been accustomed to the traditional AD model for a long time.

By rebranding it as Entra, Microsoft is positioning it as a comprehensive identity and access management platform. When you access the Entra Management Center, you'll notice that it offers more features than when it was known as Azure AD.

Let's take a closer look at Verified ID. We will start with the following technical resource:

Introduction to Microsoft Entra Verified ID - Microsoft Entra Verified ID | Microsoft Learn

First, the background for the emergence of Verified ID is as follows:

In today’s world, our digital and physical lives are increasingly intertwined with the apps, services, and devices we use. This digital revolution opens up a world of possibilities, allowing us to connect with numerous companies and individuals in ways previously unimaginable.

However, with this increased connectivity comes a greater risk of identity theft and data breaches. These breaches can have significant impacts on both our personal and professional lives. But there is hope. Microsoft, in collaboration with various communities, has developed a decentralized identity solution that enables individuals to control their own digital identity, offering a secure and private way to manage identity data without relying on centralized authorities or intermediaries.

-> The key here is the Decentralized Identity solution. To be honest, the other concepts are a bit difficult for me to explain in more detail at my current level. Looking at this… if I had deep-dived into identity management alone, I probably wouldn’t have any trouble making a living.

I think I need to test how to use this practically and eventually gain a better understanding through hands-on experience.

Lead with open standards

Microsoft has implemented the following standards:

W3C Decentralized Identifier

W3C Verifiable Credentials

DIF Sidetree

DIF Well Known DID Configuration

DIF DID-SIOP

DIF Presentation Exchange

-> This suggests that it's not only something used in M365 but is a concept that can be integrated with other systems, similar to SSO or in a different capacity.

What is DID (Decentralized ID)?

DID is an identity management system where individuals, not central authorities or corporations, have direct control over the ownership and management of their identity information.

It ensures the integrity and security of identity information through a decentralized network rather than relying on central servers or institutions. Distributed ledger technologies, such as blockchain, are typically used, with the goal of giving individuals full control over their identity information.

So, what is Microsoft Verified ID? My understanding is that it plays the role of the issuer, verifier, and intermediary (Role Modeler).

The content explained by each item in the diagram is as follows:

1. W3C DID (Decentralized Identifier) Number

- A unique ID.

2. Trust System

- It verifies and authenticates to check DID documents.

3. MS Authenticate App

- Serves as a digital wallet. You can think of it like a wallet where the user stores their ID cards.

4. Microsoft Resolver

- An API that uses the did:web method to query and verify DIDs, returning the DDO (DID Document Object).

5. Microsoft Entra Verified ID API

- A REST API for issuing and verifying W3C Verifiable Credentials, signed using the did:web method, through Azure’s issuance and verification services.

In order to cover this flow in detail, it seems necessary to build a concrete sample environment to fully understand it.

Once I’ve built a sample, posted about it, and gained a reasonable understanding, I will update this post accordingly.

Previous Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (5) Sending emails using the Mail.send permission

https://youtu.be/YeCf5GNVzf0

This time, let's add an Email tab to display the contents of Mailfolders.

Currently, the design looks like this. We will add the Email tab between Home and Privacy.

_layout.cshtml

Add the following content as shown below.

<li class="nav-item">
    <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Mailfolders">Email</a>
</li>

Confirm that the addition has been successfully made.

When clicked, it will be displayed as shown below.

Previous post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (4) Display Mailbox using the Mail.read permission

Continuing from the previous post, this time we will implement the functionality to compose and send emails using the Mail.Send permission of the Graph API.

We'll continue using the project created in the previous post.

https://youtu.be/KReqV8EPVh0

The process pattern is somewhat established at this point:

Step 1: Add Mail.Send permission

Step 2: Create a ViewModel for sending emails

Step 3: Create a View for composing and sending emails

Step 4: Add the Action Method for sending emails

Step 1. Add Mail.Send permission

Appsettings.json

Add Mail.Send permission.

Step 2. Create a View Model for Sending Emails

Create the EmailSendViewModel to hold the data needed for sending emails. This model will include fields like recipient address, email subject, and email body.

Create the EmailSendViewModel class

public class EmailSendViewModel
{
        public string To { get; set; } = string.Empty;
        public string Subject { get; set; } = string.Empty;
        public string Body { get; set; } = string.Empty;
}

Step 3. Create a View for Sending Emails

Create a view (SendEmail.cshtml) in the Views/Home directory, where users can compose and send emails. This view will use the EmailSendViewModel as its model.

Create SendEmail.cshtml

Modify the content as shown below.

@model Identity.Models.EmailSendViewModel

<h2>Send Email</h2>

<form asp-action="SendEmail">
    <div class="form-group">
        <label>To</label>
        <input asp-for="To" class="form-control" />
    </div>
    <div class="form-group">
        <label>Subject</label>
        <input asp-for="Subject" class="form-control" />
    </div>
    <div class="form-group">
        <label>Body</label>
        <textarea asp-for="Body" class="form-control"></textarea>
    </div>
    <button type="submit" class="btn btn-primary">Send</button>
</form>

Step 4. Add Action Method for Sending Emails

Add the SendEmail action method to the HomeController. This method accepts EmailSendViewModel as a parameter and sends an email using the Microsoft Graph API.

Modify HomeController.cs.

Add the following content.

// GET action method to display the email sending form
[HttpGet]
public IActionResult SendEmail()
{
    return View(new EmailSendViewModel()); // Pass an empty model to the view
}

// Sendemail
[HttpPost]
[AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
public async Task<IActionResult> SendEmail(EmailSendViewModel model)
{
    var message = new Message
    {
        Subject = model.Subject,
        Body = new ItemBody
        {
            ContentType = BodyType.Text,
            Content = model.Body
        },
        ToRecipients = new List<Recipient>()
        {
            new Recipient
            {
                EmailAddress = new EmailAddress
                {
                    Address = model.To
                }
            }
        }
    };

    await _graphServiceClient.Me.SendMail(message, null).Request().PostAsync();

    return RedirectToAction("Index");
}

Navigate to the Home/sendemail URL.

Send a test email

The test email has been received.

Previous Post:

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (3) Creating a sample login page using the Microsoft Identity Platform

Continuing from the previous post, this time we will use the Mail.Read permission in the Graph API to retrieve mail folders, subject lines, and content, and publish them on IIS.

We will continue using the project created in the previous post.

https://youtu.be/tOCCgRloYOo

Step 1. Testing Mail.Read Permission

We will test the Mail.Read permission by retrieving only the subject lines of the user's emails on a specific page.

Add the Mail.Read permission to the existing Appsettings.json -> Save the file.

{
  "AzureAd": {
    "Instance": "https://login.microsoftonline.com/",
    "Domain": "M365x31504705.onmicrosoft.com",
    "TenantId": "a0c898ca-2445-4e74-ab4b-afd7916549a6",
    "ClientId": "726cf3c0-8faa-4b91-a3dc-4ec4723a411b",
    "CallbackPath": "/signin-oidc"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "MicrosoftGraph": {
    "BaseUrl": "https://graph.microsoft.com/v1.0",
    "Scopes": "user.read mail.read" //Add Mail.read
  }
}

Modify the HomeController.cs file

Add the //Email Titles section to the existing code as shown below.

using Identity.Models;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Mvc;
using System.Diagnostics;
using Microsoft.Graph;
using Microsoft.Identity.Web;

namespace Identity.Controllers
{
    [Authorize]
    public class HomeController : Controller
    {
        private readonly GraphServiceClient _graphServiceClient;
        private readonly ILogger<HomeController> _logger;

        public HomeController(ILogger<HomeController> logger, GraphServiceClient graphServiceClient)
        {
            _logger = logger;
            _graphServiceClient = graphServiceClient;
        }

        [AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
        public async Task<IActionResult> Index()
        {
            var user = await _graphServiceClient.Me.Request().GetAsync();
            ViewData["GraphApiResult"] = user.DisplayName;
            return View();
        }

        // Email Titles
        [AuthorizeForScopes(ScopeKeySection = "MicrosoftGraph:Scopes")]
        public async Task<IActionResult> EmailTitles()
        {
            var messages = await _graphServiceClient.Me.Messages
                .Request()
                .Select(m => new { m.Subject })
                .GetAsync();

            var titles = messages.Select(m => m.Subject).ToList();
            return View(titles);
        }

        public IActionResult Privacy()
        {
            return View();
        }

        [AllowAnonymous]
        [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
        public IActionResult Error()
        {
            return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
        }
    }
}

Create the View.

Views -> Home -> Add -> View

Razor View -> Empty -> Add

EmailTitles.cshtml -> Add

It will be generated as shown below.

Modify the content as follows.

@model List<string>

<h2>Email Titles</h2>
<ul>
@foreach (var title in Model)
{
    <li>@title</li>
}
</ul>

Start Debuging -> Log in -> Verify permissions and click Accept.

When you navigate to the Home/emailtitles URL, it will be displayed as shown below.

When compared with OWA (Outlook Web App), you can see that only the email subjects have been retrieved.

This time, let's create a page that retrieves and displays emails in the following structure: Folder -> Subject -> Body.

Step2. Action Method

Action Methods in the controller handle HTTP requests and retrieve data by calling the Microsoft Graph API. We will implement Action Methods such as MailFolders, EmailTitles, and EmailDetails to fetch the list of mail folders, the list of emails in a specific folder, and the detailed content of an email, respectively.

Modify the HomeController.cs file

Remove the existing Email Titles code.

Insert the code for Mail Folders, Titles, and Details respectively.

//MailFolders
public async Task<IActionResult> MailFolders()
{
    var mailFolders = await _graphServiceClient.Me.MailFolders
        .Request()
        .GetAsync();

    return View(mailFolders.CurrentPage.Select(f => new MailFolderViewModel { Id = f.Id, DisplayName = f.DisplayName }).ToList());
}

//EmailTitles
public async Task<IActionResult> EmailTitles(string folderId)
{
    var messages = await _graphServiceClient.Me.MailFolders[folderId].Messages
        .Request()
        .Select(m => new { m.Subject, m.Id })
        .GetAsync();

    var titles = messages.CurrentPage.Select(m => new EmailViewModel { Id = m.Id, Subject = m.Subject }).ToList();
    return View(titles);
}

//EmailDetails
public async Task<IActionResult> EmailDetails(string messageId)
{
    var message = await _graphServiceClient.Me.Messages[messageId]
        .Request()
        .Select(m => new { m.Subject, m.Body })
        .GetAsync();

    var model = new EmailDetailsViewModel
    {
        Subject = message.Subject,
        BodyContent = message.Body.Content
    };

    return View(model);
}

Step3. View model

A View Model is a model used to pass data to the View and is used to define the data retrieved from the Action Method. For example, the EmailViewModel includes the email's ID and subject. This allows the data needed in the view to be structured and managed efficiently.

Right-Click on the Models folder -> Add -> Class

MailFolderViewModel.cs -> Add

It will be generated as shown below.

Modify it as shown below.

namespace Identity.Models
{
    public class MailFolderViewModel
    {
        public string Id { get; set; }
        public string DisplayName { get; set; }
    }
}

Similarly, go to Models -> Add -> Class.

EmailViewModel.cs -> Next

Modify it as shown below -> Save.

namespace Identity.Models
{
    public class EmailViewModel
    {
        public string Id { get; set; }
        public string Subject { get; set; }
    }
}

Add EmailDetailsViewModel.cs in the same way.

Modify it as shown below -> Save.

public class EmailDetailsViewModel
{
    public string Subject { get; set; }
    public string BodyContent { get; set; }
}

Step 4. View

Finally, the View constructs the user interface and displays the data received from the View Model. Create corresponding view files for each action in the Views/Home directory.

Views/Home Folder -> Add -> New Item

MailFolders.cshtml -> Add

Modify as shown below and save.

@model IEnumerable<Identity.Models.MailFolderViewModel>

<h2>Mail Folders</h2>
<ul>
    @foreach (var folder in Model)
    {
        <li><a href="@Url.Action("EmailTitles", "Home", new { folderId = folder.Id })">@folder.DisplayName</a></li>
    }
</ul>

Modify the previously created Emailtitles.cshtml file.

@model IEnumerable<Identity.Models.MailFolderViewModel>

<h2>Mail Folders</h2>
<ul>
    @foreach (var folder in Model)
    {
        <li><a href="@Url.Action("EmailTitles", "Home", new { folderId = folder.Id })">@folder.DisplayName</a></li>
    }
</ul>

Modify the previously created Emailtitles.cshtml file.

Modify it as shown below and save.

@model IEnumerable<Identity.Models.EmailViewModel>

<h2>Emails</h2>
<ul>
    @foreach (var email in Model)
    {
        <li><a href="@Url.Action("EmailDetails", "Home", new { messageId = email.Id })">@email.Subject</a></li>
    }
</ul>

Create EmailDetails.cshtml in the same manner as the previously created files.

EmailDetails.cshtml -> Add

@model Identity.Models.EmailDetailsViewModel

<h2>@Model.Subject</h2>
<div>
    @Html.Raw(Model.BodyContent)
</div>

Start Debugging

Access the path /home/mailfolders.

The list of folders is displayed. Click on Inbox.

You can now see the list of emails in the Inbox. Click on the email subject to view more details.

The email body is displayed.

Proceed with the Publish and IIS deployment process as in the previous post. Verify the functionality as shown below.

Last Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (2) Publishing an ASP.NET Sample Page to IIS

In this post, we will create a login page in IIS using an M365 (Entra ID) sample login page.

https://youtu.be/hb7ZDVwJWEE

Launch Visual Studio -> Create a new project

ASP.NET Core Web App (Model-View-Controller)

Specify the Project name-> Next

Authentication type -> Microsoft identity platform -> Create

Next

Sign in -> Microsoft

Log in with the administrator account.

Create new

A browser window pops up. Log in with the administrator account.

Authentication complete.

Specify the Display name. -> Register

Confirm that the creation is successful.-> Next

Add Microsoft Graph permissions -> Next

Save the Client secret value in a notepad.-> Next

Finish

Close

Close

Service is registered, and verify that Secrets.json (Local) has been created.

Double-click on the Appsettings.json file.

The information for the created app is displayed.

The same information is confirmed in Entra ID.

Start Debugging

After accessing localhost, you're redirected directly to the login page -> Log in with the administrator account.

Upon first access, the permissions are displayed as shown below -> Click Accept. -> Accept

Display the logged-in account information.

When you sign out, the following message is displayed.

When you log in with a different account, it displays the information of that account.

Build -> Identity

Web Server (IIS) -> Next

Web Deploy Package -> Next

Specify the location to export the package -> Set the Site Name -> Click Finish.

Close

Publish

Once completed, copy the package file to the IIS Server.

As done in the previous post, after extracting the files, copy the essential folders and files, such as wwwroot, to the root directory as shown below.

Launch IIS Manager

Righ-Click on Sites -> Add Website

Specify the settings as shown below.

When testing on localhost, an Error 500 occurs as shown below. The cause is that the ClientSecret value is not included during publishing, which leads to this issue.

Open the Appsettings.json file using Notepad.

Add the previously saved Secret Value in the following format -> Save the file:

IISRESET

Confirm the login process.

Proceed with testing by accessing the published URL.

A Redirect URI error has occurred.

Entra ID Admin center -> Applications -> App registration -> Authentication -> Add the following to Redirect URIs as shown below.

Confirm the login process.\

Previous Post

2024.09.16 - [Microsoft 365/Graph & IIS] - Microsoft Graph & IIS. (1) Setting up the basic testing environment.

In this post, we will cover the process of publishing an ASP.NET Sample Page to IIS. Since most Microsoft solutions are based on ASP.NET, I thought this would be a necessary step before testing Graph.

https://youtu.be/6z7HdW6IoCI

Launch Visual Studio.

File -> New -> Project

ASP.NET Core Web App (Model-View-Controller) -> Next

Next

Verify that the Framework is set to .NET 8.0 -> Click "Create" (You will need to install the Runtime and SDK version 8.0 on IIS to match this setting.)

Solution Explorer -> Controllers -> Add -> Controller

MVC Controller - Empty -> Add

Name the controller as HelloWorldController. -> Add

Right-Click on Views -> Add -> New Folder

Name it HelloWorld.

Right-click on HelloWorld.-> Add -> New Item

If the following options appear, select Show All Templates.

Razor View - Empty -> Confirm the name as Index.cshtml. -> Add

Verify that it has been created under the HelloWorld folder.

다음과 같이 입력합니다.

ViewData["Title"] = "Index";

<h2>Index</h2>
<p>Hello from the HelloWorld view!</p>

Debug -> Start Debugging

If any messages related to SSL certificates appear, click "Yes" for all of them.

Yes

Yes

Yes

The sample page is now accessible in Edge.

When you access /HelloWorld, it is displayed as follows:

Now, let's proceed with creating the sample page as a site in IIS.

Build -> Publish [Project Name]

Web Server (IIS) -> Next

Web Deploy Package -> Next

Specify the location. -> Site name 지정 -> Finish

Click Publish.

It will be generated as shown below. Now, copy the files to the IIS server.

After copying, extract the files.

After extracting, move the files to a subfolder as shown below -> Copy the folder and files to the root directory (C:\Sample).

Copy completed.

Launch IIS Manager.

Sites -> Add Website

Proceed with the creation process as shown below. (For the certificate, specify the one that was previously created.)

Confirm that the creation is successful.

Application Pools -> Double-click on **Sample**.

.NET CLR version -> Change the setting to **No Managed Code**.

IISRESET

Access localhost to verify the setup.

Once DNS registration and certificate binding are completed, test the published URL.

When testing Exchange Online and M365, there are times when an environment related to Graph API is needed. In the past, I would have skipped anything related to development, but now ChatGPT can generate sample pages to some extent.

Without any prior development knowledge, I will build a test environment using the knowledge gained from ChatGPT, based on IIS. The ultimate goal is to integrate Microsoft Graph, and I will post about the necessary components along the way.

In this post, I will cover installing Visual Studio 2022 and configuring the IIS Server.

https://youtu.be/LRoFa0EX-iA

Step 1. Installing Visual Studio 2022

Download Visual Studio 2022

https://visualstudio.microsoft.com/downloads/

Run the installation file.

Continue

Check ASP.NET -> Install

Proceed with the installation.

Installation complete -> Verify by running the application.

Step 2. Setting up the IIS Server

I proceeded with the installation separately from the VM where Visual Studio is installed.

Server Manager -> Add roles and features

Check IIS

Check the following features:

URL Authorization

Windows Authentication

Tracing

.NET Extensibility 4.8

.ASP.NET 4.8

WebSocket Protocol

After completing the IIS installation, install the necessary .NET components.

.NET Core Hosting Bundle installer

https://dotnet.microsoft.com/permalink/dotnetcore-current-windows-runtime-bundle-installer

Install .Net SDK 8.0

https://dotnet.microsoft.com/en-us/download/dotnet/8.0

Run PowerShell to check the installed version.

dotnet --list-sdks
dotnet --list-runtimes

In the next post, I will cover how to create an ASP.NET sample page in Visual Studio.
